Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

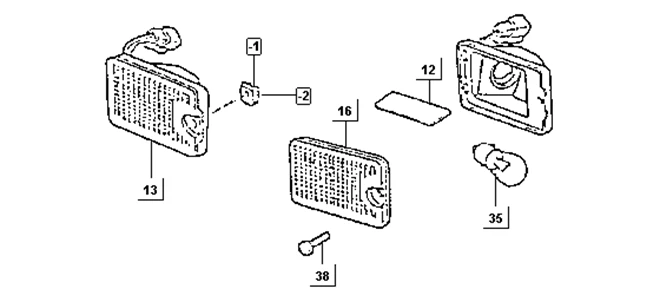

Connexions électriques : T81-12 FEU DE RECUL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T81-12.png)
1 |
9004183025000 - ECROU More informationQuantity required : 1 |
||||||
|
2 |
9004183050000 NUT More informationQuantity required : 1 |
||||||
|
12 |
8168887Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/6/6/img/117866.jpg)
13 |
LAMP DE RECUL OEM PIAGGIO PORTER 2020 <-8167087Z010006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/6/3/img/114663.jpg)
16 |
CABOCHON DE LAMP TRANSPARENT OEM PIAGGIO PORTER 1998-2020-8167187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
35 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
|
38 |
8155987Z03000 - VIS More informationQuantity required : 1 |
