Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

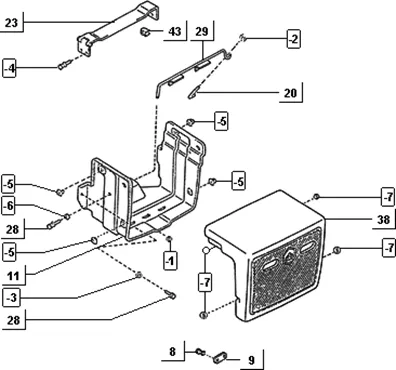

Châssis : T74-54 LOGEMENT BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T74-54.png)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
9004208030000 WASHER More informationQuantity required : 2 |
||||||
|
4 |
9004159377000 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
5 |
CLIPS OEM PIAGGIO PORTER 2020 <-004189001000 More informationQuantity required : 4 |
||||||
|
6 |
9004208030000 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.jpg)
7 |
SCREW PARKER (5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9356055012000 More informationQuantity required : 4 |
||||||
|
8 |
263750 CLAMP More informationQuantity required : 1 |
||||||
|
9 |
263740 CALIPER More informationQuantity required : 1 |
||||||
|
11 |
B0259505 DOOR BATT. More informationQuantity required : 1 |
||||||
|
20 |
7445187Z01000 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/0/4/img/116904.jpg)
23 |
263400 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
28 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
28 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
29 |
263403 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/4/img/117624.jpg)
38 |
COVER DE BATTERY OEM PIAGGIO PORTER 2009 > 2020-262836 More informationQuantity required : 1 |
||||||
|
43 |
D4815587Z01 NUT More informationQuantity required : 1 |
