Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E4 2010 PIAGGIO VU

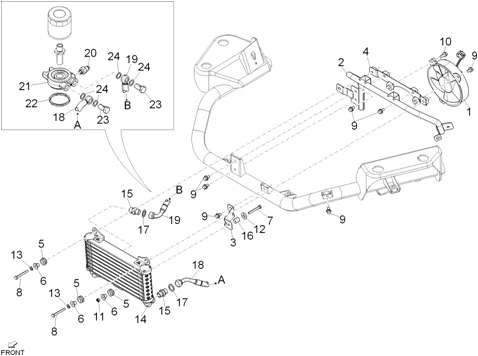

Châssis - parties plastiques - carrosseries : 02.48 REFROIDISSEUR D'HUILE MOTEUR
Refroidisseur d'huile moteur
Search
622055 - ELECTROVENTILATEUR

1
P2R reference P2R reference 67719
Maker reference Maker reference 622055

622055 - ELECTROVENTILATEUR

More information

Quantity required : 1

B006181 - SUPPORT RADIATEUR

2
P2R reference P2R reference 117317
Maker reference Maker reference B006181

B006181 BRACKET RADIATOR

More information

Quantity required : 1

B006190 - EQUERRE

3
P2R reference P2R reference 112969
Maker reference Maker reference B006190

B006190 BRACKET

More information

Quantity required : 1

B006191 - EQUERRE

4
P2R reference P2R reference 113624
Maker reference Maker reference B006191

B006191 BRACKET

More information

Quantity required : 1

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

5
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 3

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

6
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 3

030057 - VIS

7
P2R reference P2R reference 65609
Maker reference Maker reference 0300575

030057-SCREW

More information

Quantity required : 1

SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092

8
P2R reference P2R reference 65643
Maker reference Maker reference 0310925

SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092

More information

Quantity required : 2

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

9
P2R reference P2R reference 151198
Maker reference Maker reference CM287314

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

More information

Quantity required : 7

BOULON

10
P2R reference P2R reference
Maker reference Maker reference 9165140620000

BOULON

709116 - ECROU

11
P2R reference P2R reference 68494
Maker reference Maker reference 709116

709116-NUT

More information

Quantity required : 1

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

12
P2R reference P2R reference 65362
Maker reference Maker reference 0137775

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

13
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

B007150 - RADIATEUR HUILE

14
P2R reference P2R reference 121762
Maker reference Maker reference B007150

B007150 RADIATOR OIL

More information

Quantity required : 1

GU01161331 - REDUCTION

15
P2R reference P2R reference 73411
Maker reference Maker reference GU01161331

GU01161331-REDUCTION

More information

Quantity required : 2

B006194 - ENTRETOISE

16
P2R reference P2R reference 112582
Maker reference Maker reference B006194

B006194 SPACER

More information

Quantity required : 1

GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230

17
P2R reference P2R reference 73410
Maker reference Maker reference GU01154230

GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230

More information

Quantity required : 2

B010739 - TUBE HUILE

18
P2R reference P2R reference 120361
Maker reference Maker reference B010739

B010739 - TUBE HUILE

More information

Quantity required : 1

B010740 - TUBE HUILE

19
P2R reference P2R reference 119687
Maker reference Maker reference B010740

B010740 - TUBE HUILE

More information

Quantity required : 1

SONDE DE TEMPERATURE WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA SX, RX 2006 >, RS 2006 >, RS4 2011 >-880325

20
P2R reference P2R reference 70730
Maker reference Maker reference 880325

SONDE DE TEMPERATURE WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA SX, RX 2006 >, RS 2006 >, RS4 2011 >-880325

More information

Quantity required : 1

B011057 - ADAPTEUR PARE-POUSSIER

21
P2R reference P2R reference 119747
Maker reference Maker reference B011057

B011057 ADAPTEUR PROTECTOR-POUSSIER

More information

Quantity required : 1

B010723 - JOINT

22
P2R reference P2R reference 114312
Maker reference Maker reference B010723

B010723 GASKET

More information

Quantity required : 1

B011020 - RACCORD

23
P2R reference P2R reference 114962
Maker reference Maker reference B011020

B011020 - RACCORD

More information

Quantity required : 2

GASKET CUIVRE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-224644

24
P2R reference P2R reference 110282
Maker reference Maker reference 224644

GASKET CUIVRE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-224644

More information

Quantity required : 4
