Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E4 2010 PIAGGIO VU

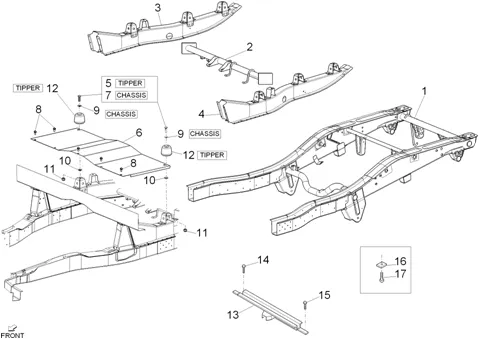

Châssis - parties plastiques - carrosseries : 02.04 CHÂSSIS/CAISSE ARRIÈRE
Châssis/caisse arrière
Search
B0058155 - CHASSIS

1
P2R reference P2R reference 124257
Maker reference Maker reference B0058155

B0058155 - CHASSIS

More information

Quantity required : 1

B0072045 - TRAVERSE

2
P2R reference P2R reference 120612
Maker reference Maker reference B0072045

B0072045 TRAVERSE

More information

Quantity required : 1

B0047805 - CACHE ROUE ARR.GAU.

3
P2R reference P2R reference 122620
Maker reference Maker reference B0047805

B0047805 COVER WHEEL ARR. GAU.

More information

Quantity required : 1

B0047815 - CACHE ROUE ARR.GAU.

4
P2R reference P2R reference 122603
Maker reference Maker reference B0047815

B0047815 COVER WHEEL ARR. GAU.

More information

Quantity required : 1

SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-583480

5
P2R reference P2R reference 67285
Maker reference Maker reference 583480

SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-583480

More information

Quantity required : 2

B000153 - PROTECTION

6
P2R reference P2R reference 122396
Maker reference Maker reference B000153

B000153 PROTECTOR

More information

Quantity required : 1

SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157

7
P2R reference P2R reference 65651
Maker reference Maker reference 0311575

SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157

More information

Quantity required : 2

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

8
P2R reference P2R reference 110387
Maker reference Maker reference D9166160820

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

More information

Quantity required : 5

WASHER PLATE (10X30X2) OEM PIAGGIO COMMON A LA RANGE-013962

9
P2R reference P2R reference 65370
Maker reference Maker reference 0139625

WASHER PLATE (10X30X2) OEM PIAGGIO COMMON A LA RANGE-013962

More information

Quantity required : 2

078783 - RONDELLE

10
P2R reference P2R reference 111085
Maker reference Maker reference 0787835

078783 WASHER

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

11
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 2

B000071 - CUVETTE

12
P2R reference P2R reference 115150
Maker reference Maker reference B000071

B000071 CUVETTE

More information

Quantity required : 2

6510287Z04000 - TRAVERSE

13
P2R reference P2R reference 121568
Maker reference Maker reference 6510287Z04000

6510287Z04000 TRAVERSE

More information

Quantity required : 1

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

14
P2R reference P2R reference 151198
Maker reference Maker reference CM287314

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

More information

Quantity required : 4

9165141025000 - BOULON

15
P2R reference P2R reference 110589
Maker reference Maker reference 9165141025000

9165141025000 BOLT

More information

Quantity required : 4

9004541144000 - TAMPON

16
P2R reference P2R reference 111370
Maker reference Maker reference 9004541144000

9004541144000 BUFFER

More information

Quantity required : 2

9352014014000 - VIS

17
P2R reference P2R reference 109781
Maker reference Maker reference 9352014014000

9352014014000 SCREW

More information

Quantity required : 2
