Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E4 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

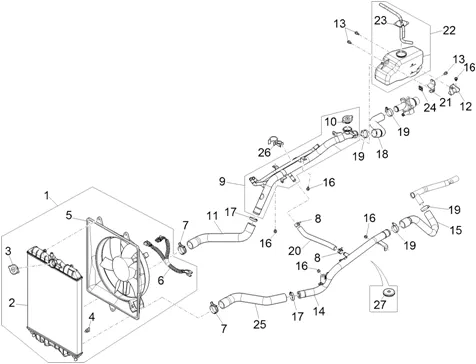

Châssis - parties plastiques - carrosseries : 02.43 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/550/Porter_Maxxi_Multitech_E4_2010_02.43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/0/6/9/img/123069.jpg)
1 |
RADIATOR OEM PIAGGIO PORTER E4-E5 2010 > 2015-B026178 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/0/9/img/126109.jpg)
2 |
RADIATOR COOLING OEM PIAGGIO PORTER 2020 <-B026114 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/1/0/img/117710.jpg)
3 |
CAP DE RADIATOR ET DE REMPLISSAGE ON CIRCUIT OEM PIAGGIO PORTER MULTITECH E4 2010 >-B005372 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/6/0/img/117060.jpg)
4 |
CAP DE RADIATOR LOWER OEM PIAGGIO PORTER 2020 <-1618587Z02000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/0/4/5/img/143045.jpg)
5 |
VENTILATEUR COOLING RADIATOR (LIVRE WITH BUSE) OEM PIAGGIO PORTER 2010 > 2020-1E000304 More informationQuantity required : 1 |
|||||||||
6 |
B004705 FAISC. CABLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/7/5/img/112975.jpg)
7 |
CLAMP DE HOSE COOLING OEM PIAGGIO PORTER 2009 > 2020-D9004467449 More informationQuantity required : 2 |
|||||||||
|
8 |
9004467361000 CLAMP More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/1/1/img/121611.jpg)
9 |
COOLANT PIPE (LONG) "PIAGGIO GENUINE PARTS" PORTER E4 2010> -B005537 More informationQuantity required : 1 |
|||||||||
|
10 |
CAP DE RADIATOR ET DE REMPLISSAGE ON CIRCUIT OEM PIAGGIO PORTER MULTITECH E4 2010 >-B005372 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/7/1/img/115471.jpg)
11 |
HOSE DE COOLING RADIATOR VERS REFOULEMENT OEM PIAGGIO PORTER-B004741 More informationQuantity required : 1 |
|||||||||
|
12 |
1653787Z01000 BRACKET More informationQuantity required : 1 |
|||||||||
|
13 |
D9165260616 - BOULON More informationQuantity required : 3 |
|||||||||
|
13 |
D9165260616 - BOULON More informationQuantity required : 3 |
|||||||||
|
14 |
B005266 HOSE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/4/7/img/116247.jpg)
15 |
HOSE COOLING RADIATOR OEM PIAGGIO PORTER 2010 > 2015-B005265 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.jpg)
16 |
D9165140612 - BOULON More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/8/img/68498.jpg)
17 |
HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/3/9/img/116339.jpg)
18 |
HOSE COOLING COURT OEM PIAGGIO PORTER E4 2010 > 2015-B005538 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/1/img/111581.jpg)
19 |
CLAMP HOSE 25-40 OEM PIAGGIO COMMON A LA RANGE-645663 More informationQuantity required : 4 |
|||||||||
|
20 |
B005267 HOSE More informationQuantity required : 1 |
|||||||||
|
21 |
1653887Z01000 BRACKET More informationQuantity required : 1 |
|||||||||
|
22 |
TANK/VASE EXPANSION OEM PIAGGIO PORTER 20/05/2011 <-1650087Z07000 More informationQuantity required : 1 |
|||||||||
|
22 |
TANK/VASE EXPANSION OEM PIAGGIO PORTER 20/05/2011 > 2020-1R000587 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/6/0/img/115560.jpg)
23 |
CAP VASE EXPANSION OEM PIAGGIO PORTER 1998 > 2015-1650387Z08000 More informationQuantity required : 1 |
|||||||||
|
24 |
D9004179081 NUT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/0/0/img/115300.jpg)
25 |
HOSE COOLING DU RADIATOR VERS LE BLOC OEM PIAGGIO PORTER-B004742 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/0/1/img/113201.jpg)
26 |
CLAMP DE MAINTIEN HOSE DE COOLING OEM PIAGGIO PORTER STD/MAXXI 1992 > 2015-B004963 More informationQuantity required : 1 |
|||||||||
|
27 |
234259-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
