Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E4 2010 PIAGGIO VU

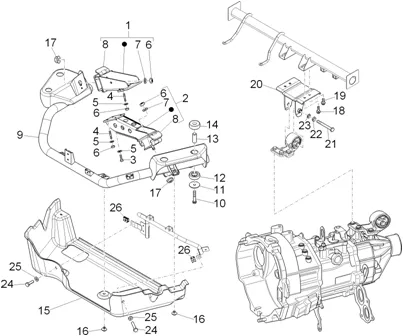

Châssis - parties plastiques - carrosseries : 02.06 SUPPORTS MOTEUR
Supports moteur
Search
B010251 - EQUERRE

1
P2R reference P2R reference 119186
Maker reference Maker reference B010251

B010251 - EQUERRE

More information

Quantity required : 1

B010245 - EQUERRE

2
P2R reference P2R reference 119639
Maker reference Maker reference B010245

B010245 - EQUERRE

More information

Quantity required : 1

B010247 - BOULON

3
P2R reference P2R reference 111740
Maker reference Maker reference B010247

B010247 BOLT

More information

Quantity required : 2

B010011 - GOUJON

4
P2R reference P2R reference 111786
Maker reference Maker reference B010011

B010011 STUD

More information

Quantity required : 6

B010620 - RONDELLE

5
P2R reference P2R reference 110808
Maker reference Maker reference B010620

B010620 - RONDELLE

More information

Quantity required : 2

B010619 - ECROU

6
P2R reference P2R reference 110809
Maker reference Maker reference B010619

B010619 NUT

More information

Quantity required : 2

B010249 - RONDELLE

7
P2R reference P2R reference 110931
Maker reference Maker reference B010249

B010249 WASHER

More information

Quantity required : 2

B010250 - TAMPON AVANT

8
P2R reference P2R reference 114564
Maker reference Maker reference B010250

B010250 BUFFER FRONT

More information

Quantity required : 1

B007028 - SUPPORT MOTEUR

9
P2R reference P2R reference 121665
Maker reference Maker reference B007028

B007028 BRACKET ENGINE

More information

Quantity required : 1

SCREW TH (10X59) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9004101431

10
P2R reference P2R reference 111898
Maker reference Maker reference D9004101431

SCREW TH (10X59) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9004101431

More information

Quantity required : 4

WASHER PLATE (10. 4X46X3) OEM PIAGGIO COMMON A LA RANGE-9004201291000

11
P2R reference P2R reference 111503
Maker reference Maker reference 9004201291000

WASHER PLATE (10. 4X46X3) OEM PIAGGIO COMMON A LA RANGE-9004201291000

More information

Quantity required : 4

9004540073000 - TAMPON

12
P2R reference P2R reference 111255
Maker reference Maker reference 9004540073000
Replaced by référence Replaced by référence 207646

9004540073000 - TAMPON

More information

Quantity required : 4

SPACER BRACKET ENGINE OEM PIAGGIO PORTER 2020 <-D9004560252

13
P2R reference P2R reference 112235
Maker reference Maker reference D9004560252

SPACER BRACKET ENGINE OEM PIAGGIO PORTER 2020 <-D9004560252

More information

Quantity required : 4

9004540074000 - TAMPON

14
P2R reference P2R reference 111235
Maker reference Maker reference 9004540074000
Replaced by référence Replaced by référence 207647

9004540074000 - TAMPON

More information

Quantity required : 4

B023417 - COUVERCLE MOTEUR DRT

15
P2R reference P2R reference 117242
Maker reference Maker reference B023417

B023417 COVER ENGINE DRT

More information

Quantity required : 1

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-264462

16
P2R reference P2R reference 111768
Maker reference Maker reference 264462

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-264462

More information

Quantity required : 4

D9004170307 - ECROU

17
P2R reference P2R reference 110750
Maker reference Maker reference D9004170307

D9004170307 NUT

More information

Quantity required : 2

D9165160825 - BOULON

18
P2R reference P2R reference 110787
Maker reference Maker reference D9165160825

D9165160825 BOLT

More information

Quantity required : 3

D9004119554 - BOULON

19
P2R reference P2R reference 110748
Maker reference Maker reference D9004119554

D9004119554 BOLT

More information

Quantity required : 1

B007207 - PLAQUE SUPPORT MOTEUR

20
P2R reference P2R reference 117011
Maker reference Maker reference B007207

B007207 PLATE BRACKET ENGINE

More information

Quantity required : 1

262125 - BOULON

21
P2R reference P2R reference 110505
Maker reference Maker reference 262125

262125 BOLT

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

22
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

23
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

24
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

25
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

26
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2
