Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

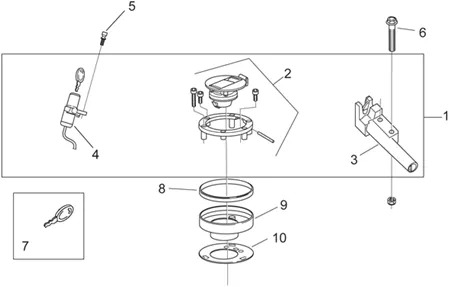

Chassis : 28.46 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.46.PNG)
1 |
Kit serrure |
||||||
|
1 |
Kit serrure |
||||||
|
1 |
AP8102958 - KIT SERRURE; More informationQuantity required : 1 |
||||||
|
2 |
AP8102435 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
AP8102583 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
Bouchon réservoir essence |
||||||
|
3 |
AP8104144-LOCK SEAT More informationQuantity required : 1 |
||||||
|
3 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/8/0/img/45880.jpg)
4 |
MAIN SWITCH-STEERING LOCK "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1995>1998, 50 RX 1995>2002, MX 2002>2003, 125-650 PEGASO, 125 FUTURA -AP8112710- More informationQuantity required : 1 |
||||||
|
4 |
Bloc démarreur-bloc; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
5 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
6 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
7 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
8 |
GASKET OF BUSH OF CAP TANK OEM PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT-AP8120893 More informationQuantity required : 1 |
||||||
|
9 |
AP8102526 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
9 |
CUVE DE CAP DE RESEVOIR FUEL OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO-AP8102535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
10 |
FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- More informationQuantity required : 1 |
