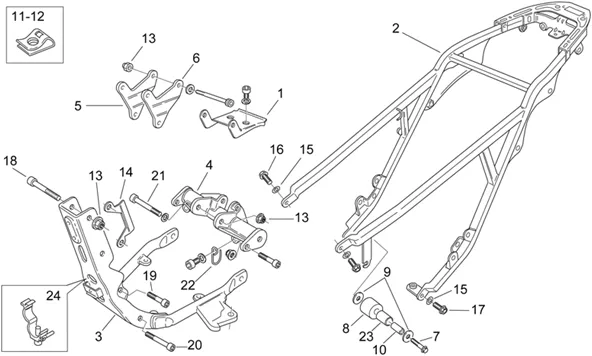

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.02.PNG)
1 |
AP8135767-BRACKET REAR TANK More informationQuantity required : 1 |
||||||
|
2 |
AP8146574 - BASE ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
Berceau, alum. |
||||||
|
3 |
Berceau, alum.; |
||||||
|
4 |
SUPPORT BIELLE DOUBLE |
||||||
|
5 |
Plaq.fix.sup.mot.dte; |
||||||
|
6 |
Plaq fix sup.mot.gche; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
7 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 1 |
||||||
|
8 |
AP8120972 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
9 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
10 |
SPACER OEM APRILIA COMMON A LA RANGE-AP8101108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 8 |
||||||
|
14 |
AP8134274 - PLAQUE COUVRE-TUYAUX; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
16 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
17 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
18 |
AP8150392-SCREW More informationQuantity required : 3 |
||||||
|
19 |
Vis |
||||||
|
20 |
AP8150040-SCREW More informationQuantity required : 1 |
||||||
|
21 |
AP8150092 - VIS More informationQuantity required : 1 |
||||||
|
22 |
AP8201417-GUIDE CABLE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
23 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
24 |
GUIDE CABLE OEM PIAGGIO/APRILIA COMMON A LA RANGE-AP8134186 More informationQuantity required : 1 |
