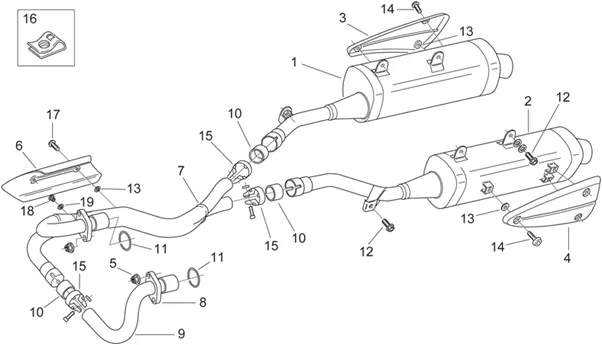

Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.37 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.37.PNG)
1 |
Silencieux dte avec catal. |
||||||
|
1 |
Silencieux dte peint |
||||||
|
1 |
AP8119367 - SILENCIEUX DTE PEINT More informationQuantity required : 1 |
||||||
|
2 |
Silencieux gche peint |
||||||
|
2 |
AP8119446 - SILENCIEUX GCHE AVEC CATAL. More informationQuantity required : 1 |
||||||
|
2 |
Silencieux gche peint |
||||||
|
3 |
Protection silenc. dte noire |
||||||
|
3 |
AP8119463-PROT SILENC. DTE BLACK More informationQuantity required : 1 |
||||||
|
4 |
Protection silenc. gche noire |
||||||
|
4 |
AP8119464-PROT SILENC. GCHENOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
5 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 4 |
||||||
|
5 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 4 |
||||||
|
6 |
AP8135978-PROTECTOR TUYAUX EXHAUST More informationQuantity required : 1 |
||||||
|
7 |
AP8119587 - TUYAU ECHAPPEMENT D. More informationQuantity required : 1 |
||||||
|
8 |
Bride fix.tuy.chr.noir; |
||||||
|
9 |
AP8119427 - TUYAU ECHAPPEMENT GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/6/2/img/46662.jpg)
10 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP8120823- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/3/7/img/46437.jpg)
11 |
GASKET EXHAUST OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004-AP8119425 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
12 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
13 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
14 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/2/0/img/45220.jpg)
15 |
CLAMP DE SILENCER EXHAUST OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004-AP8102747 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
18 |
Vis prise CO |
||||||
|
19 |
AP8119603-WASHER More informationQuantity required : 1 |
