Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

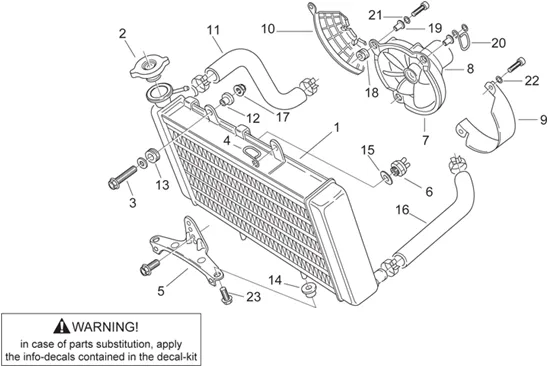

Chassis : 28.28 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.28.PNG)
1 |
AP8102469 - RADIATEUR AVEC BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/2/3/img/45223.jpg)
2 |
CAP DE RADIATOR OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2009, 1000 CAPONORD 2001 > 2007-AP8102771 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
3 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
|
4 |
AP8120512 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
5 |
AP8134924 - SUP INF RADIA=8134239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/7/5/img/45875.jpg)
6 |
SWITCH /TEMPERATURE SENSOR "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000, 125 LEONARDO 1996>2004 -AP8112677- More informationQuantity required : 1 |
||||||
|
7 |
Support ventilateur |
||||||
|
8 |
AP8124335 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
9 |
Protection ventilateur; |
||||||
|
10 |
Grille fermeture ventilateur; |
||||||
|
11 |
AP8120924-TUBE DE CYLINDER HEAD RADIATOR More informationQuantity required : 1 |
||||||
|
12 |
AP8121922 - DOUILLE RADIATEUR; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.jpg)
13 |
RUBBER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120594 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
14 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/0/img/71490.jpg)
15 |
WASHER (14X22) EN ALUMINIUM OF SENSOR TEMPERATURE OEM APRILIA COMMON A LA RANGE-AP8121837 More informationQuantity required : 1 |
||||||
|
16 |
AP8120673 - TUYAU RETOUR EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
18 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120223 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
19 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 3 |
||||||
|
20 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
21 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
22 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
23 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
