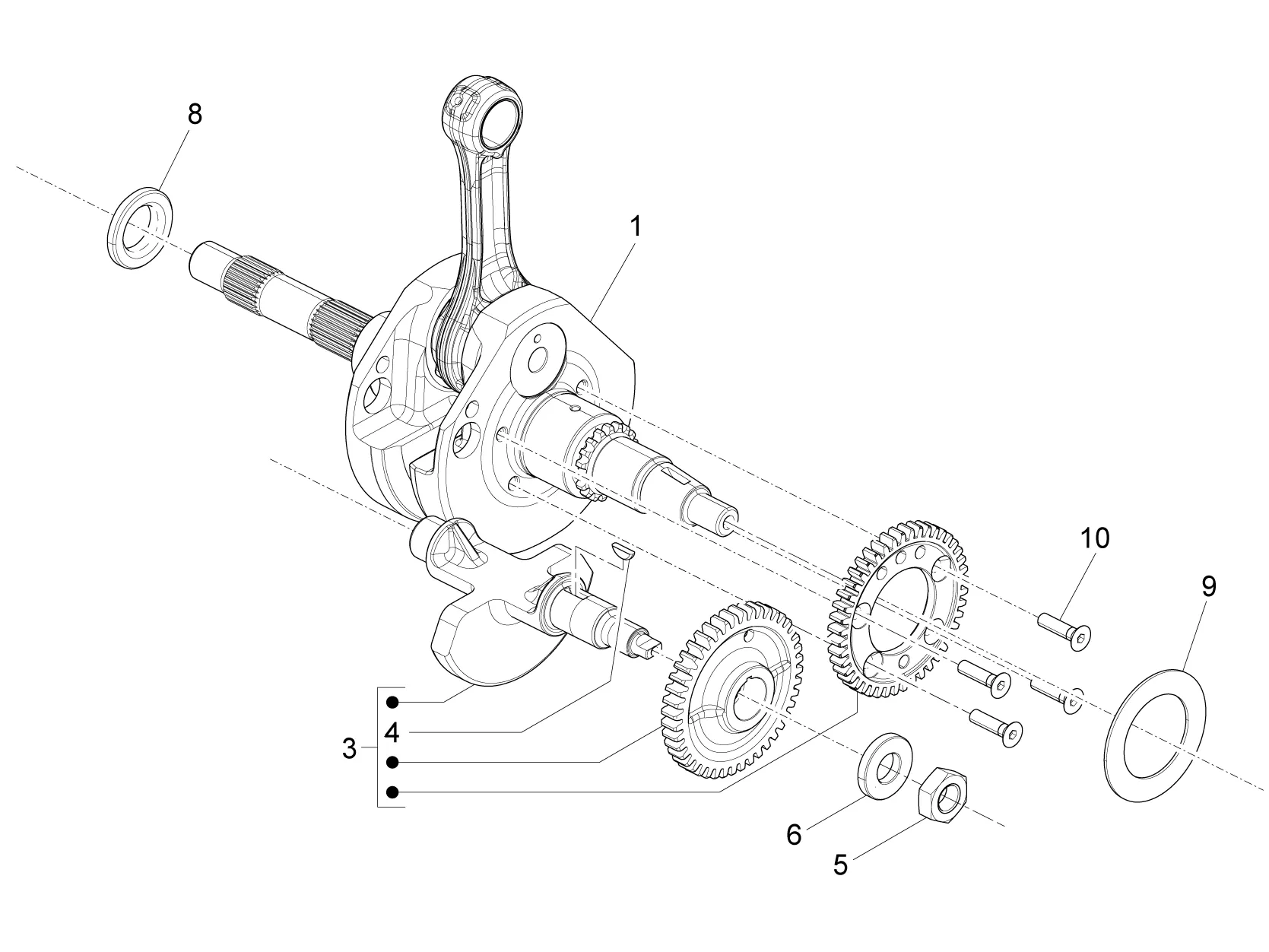

Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011 GILERA

Moteur : 01.06 VILEBREQUIN
Vilebrequin
Search
CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, X-EVO, BEVERLY, 500 X9, MP3, BEVERLY/400-500 ATLANTIC, SCARABEO -8720925001-

1
P2R reference P2R reference 70414
Maker reference Maker reference 8720925001

CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, X-EVO, BEVERLY, 500 X9, MP3, BEVERLY/400-500 ATLANTIC, SCARABEO -8720925001-

More information

Quantity required : 1

CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, 400 X-EVO, 400 BEVERLY, 500 X9, 500 MP3, 500 BEVERLY/APRILIA 400-500 ATLANTIC, 400 SCARABEO -8720925002

1
P2R reference P2R reference 70415
Maker reference Maker reference 8720925002

CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, 400 X-EVO, 400 BEVERLY, 500 X9, 500 MP3, 500 BEVERLY/APRILIA 400-500 ATLANTIC, 400 SCARABEO -8720925002

More information

Quantity required : 1

841456 - ROCHET SET

3
P2R reference P2R reference 69188
Maker reference Maker reference 841456

841456 - ROCHET SET

More information

Quantity required : 1

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

4
P2R reference P2R reference 63721
Maker reference Maker reference 000267

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

More information

Quantity required : 1

NUT (M14X1. 5) (EX 0212146) OEM PIAGGIO COMMON A LA RANGE-0212146

5
P2R reference P2R reference 65603
Maker reference Maker reference 021214

NUT (M14X1. 5) (EX 0212146) OEM PIAGGIO COMMON A LA RANGE-0212146

More information

Quantity required : 1

WASHER AJUSTEMENT SPROCKET DE RENVOI OEM PIAGGIO 500-530 BEVERLY, MP3, X9, X10-847650

6
P2R reference P2R reference 69539
Maker reference Maker reference 847650

WASHER AJUSTEMENT SPROCKET DE RENVOI OEM PIAGGIO 500-530 BEVERLY, MP3, X9, X10-847650

More information

Quantity required : 1

SPACER EMBIELLAGE OEM PIAGGIO 500 MAXI SCOOTER COMMON A LA RANGE-848222

8
P2R reference P2R reference 69566
Maker reference Maker reference 848222

SPACER EMBIELLAGE OEM PIAGGIO 500 MAXI SCOOTER COMMON A LA RANGE-848222

More information

Quantity required : 1

WASHER VILLEBREQUIN OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830012

9
P2R reference P2R reference 68886
Maker reference Maker reference 830012

WASHER VILLEBREQUIN OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830012

More information

Quantity required : 1

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797

10
P2R reference P2R reference 72728
Maker reference Maker reference B016797

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797

More information

Quantity required : 4
