Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

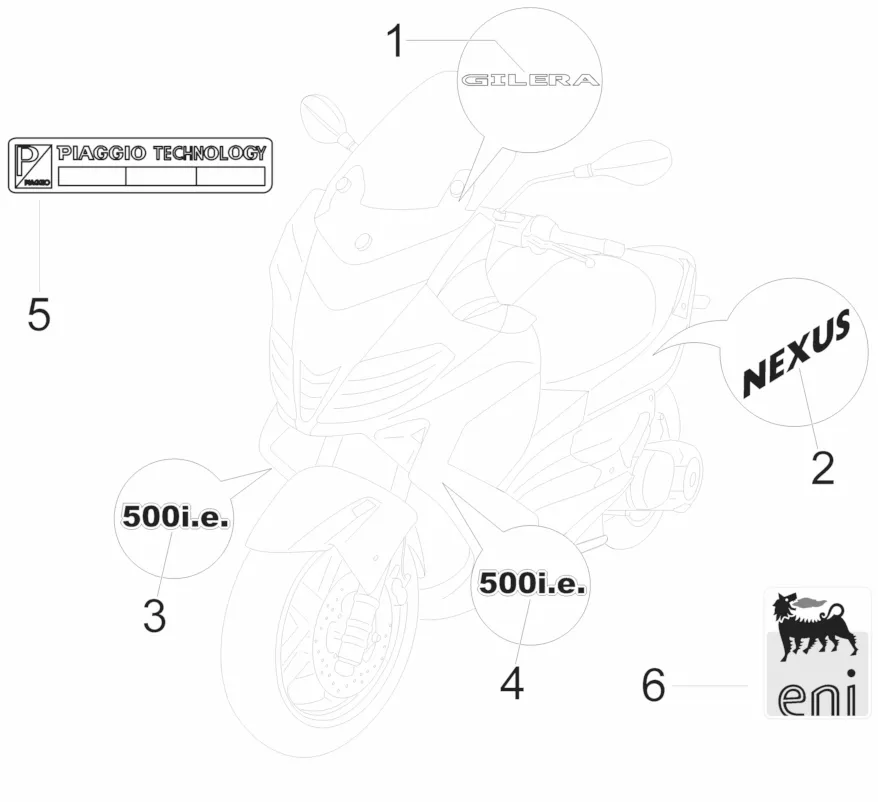

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/186/Nexus_500_E3_2009-2011-136.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/8/3/img/87983.jpg)
1 |
653756-STICKER " GILERA " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/8/8/img/85288.jpg)
1 |
STICKER/STICKER/GRAPHIC OEM PIAGGIO GILERA 125-250-300-500 NEXUS, 50-125 RUNNER-624568 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/3/4/9/img/85349.jpg)
2 |
STICKER/STICKER/GRAPHIC " NEXUS " BODY PANEL REAR OEM PIAGGIO GILERA 125-250-300-500 NEXUS-624609 More informationQuantity required : 2 |
||||||
3 |
624645 - PLAQUETTE LOGO 500 I.E DR. More informationQuantity required : 1 |
||||||
|
4 |
624646 - PLAQUETTE LOGO 500 I.E GAU More informationQuantity required : 1 |
||||||
|
5 |
672200 - MONOGRAMME CARTER More informationQuantity required : 1 |
||||||
|
6 |
895839 - DECALCO More informationQuantity required : 2 |
