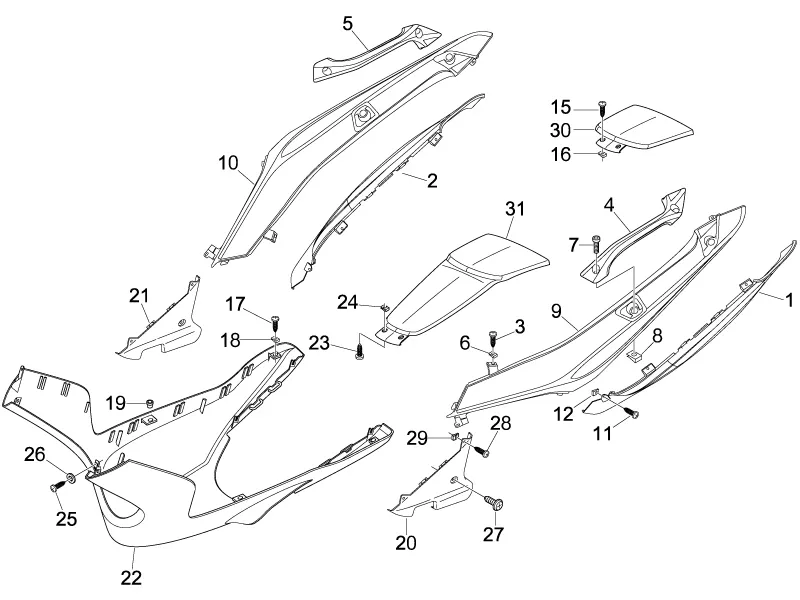

Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011

	P2R reference	94288
	Maker reference	975504000G

975504000G - COUVERTURE INFERIEUR GAU

	P2R reference	94289
	Maker reference	975505000G

975505000G-COVER LOWER DR

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	71011
	Maker reference	975043

GRIP PASSENGER LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS-975043

	P2R reference	94177
	Maker reference	97504300BR
	Replaced by référence 71011

97504300BR - POIGNEE GAU.

	P2R reference	94184
	Maker reference	97504300R7

97504300R7 - POIGNEE G

	P2R reference	71012
	Maker reference	97504300XN2

97504300XN2 - POIGNEE G

	P2R reference	94185
	Maker reference	975044

RIGHT PASSENGER HANDLE "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS -975044

	P2R reference	94186
	Maker reference	97504400BR

97504400BR-GRIP DRT.

	P2R reference	94193
	Maker reference	97504400R7

97504400R7 - POIGNEE D

	P2R reference	71013
	Maker reference	97504400XN2

97504400XN2 - POIGNEE DRT.

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	71060
	Maker reference	975840

975840-SCREW

	P2R reference	67114
	Maker reference	575268

NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268

	P2R reference	89601
	Maker reference	656913

656913 - FLANC GAU.

	P2R reference	94204
	Maker reference	975056

975056 - FLANC GAU.

	P2R reference	94206
	Maker reference	97505600BR

97505600BR - FLANC GAU.

	P2R reference	94215
	Maker reference	97505600R7

97505600R7 - FLANC GAU.

	P2R reference	71015
	Maker reference	97505600XN2

97505600XN2 - FLANC GAU.

	P2R reference	89600
	Maker reference	656912

656912 - FLANC DR.

	P2R reference	71016
	Maker reference	975057

975057-SIDE PANEL DR.

	P2R reference	94217
	Maker reference	97505700BR

97505700BR-SIDE PANEL DR.

	P2R reference	94225
	Maker reference	97505700R7
	Replaced by référence 71016

97505700R7 - FLANC DR.

	P2R reference	71017
	Maker reference	97505700XN2

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO GILERA 125-300-500 NEXUS 2009 >/APRILIA 125-300 SR-MAX 2011 > BLACK 98/A-97505700XN2

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66117
	Maker reference	272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	71061
	Maker reference	975841

BUSH DE STEP FOOT OEM PIAGGIO 125-250-300-500 NEXUS GILERA-975841

	P2R reference	71030
	Maker reference	975176000G

975176000G-CASING GAUCH FOR STAND *

	P2R reference	71031
	Maker reference	975177000G

975177000G-CASING RIGHT FOR STAND *

	P2R reference	94236
	Maker reference	975064

975064-SPOILER

	P2R reference	151075
	Maker reference	975064600G

BAS DE CAISSE OEM PIAGGIO GILERA 125-300-500 NEXUS 2009 > 2011/APRILIA 125-300 SR-MAX 2001 > 2014-975064600G

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66092
	Maker reference	270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

	P2R reference	65371
	Maker reference	013963

WASHER PLATE (4. 2X16) OEM PIAGGIO COMMON A LA RANGE-013963

	P2R reference	66043
	Maker reference	259830
	Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	71019
	Maker reference	975061

975061 - PARTIE AR FLANC BRUT

	P2R reference	94226
	Maker reference	97506100BR

97506100BR-PARTIE AR SIDE PANEL

	P2R reference	94235
	Maker reference	97506100R7

REAR SIDE CLOSING "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS RED 894 -97506100R7-

	P2R reference	71020
	Maker reference	97506100XN2

REAR SIDE CLOSING "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS BLACK 98/A -97506100XN2-

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	94287
	Maker reference	975499000G

975499000G - COVERTURE
