Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

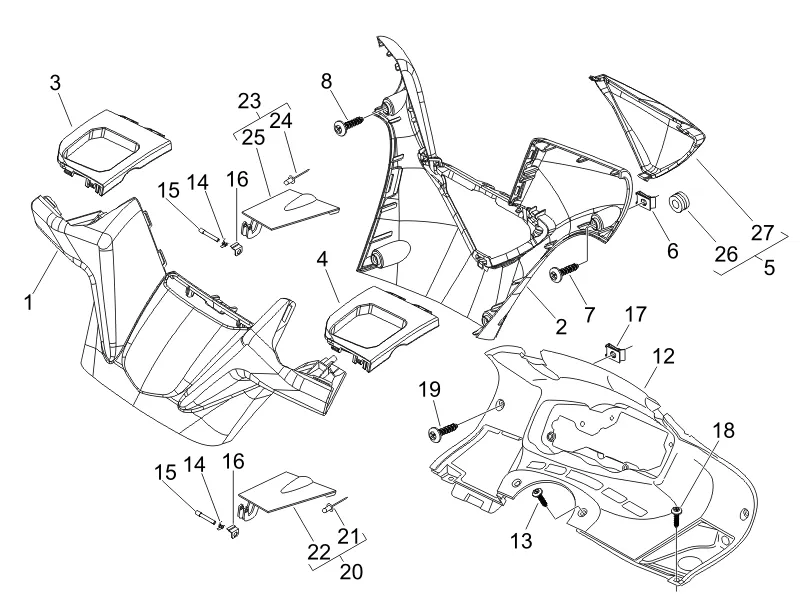

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/186/Nexus_500_E3_2009-2011-160.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/5/4/img/67754.jpg)
1 |
COVER HANDLEBAR FRONT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-624167000G More informationQuantity required : 1 |
||||||
1 |
975494000G-LID More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/5/5/img/67755.jpg)
2 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -624168000G- More informationQuantity required : 1 |
||||||
|
3 |
652631000G-PROTECTOR More informationQuantity required : 1 |
||||||
|
4 |
652632000G-PROTECTOR More informationQuantity required : 1 |
||||||
|
5 |
975077-PROTECTOR * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
8 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/2/5/img/71025.jpg)
12 |
ENTOURAGE PANEL DE EDGE OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-975072000G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
13 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/4/7/img/71047.jpg)
14 |
975685-SPRING More informationQuantity required : 2 |
||||||
|
15 |
975686-SPINDLE More informationQuantity required : 2 |
||||||
|
16 |
975832-PLATE More informationQuantity required : 2 |
||||||
|
17 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
18 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
|
19 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
|
20 |
975493000G-LID More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/2/img/65802.jpg)
21 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 0 |
||||||
|
22 |
975493000G-LID More informationQuantity required : 0 |
||||||
|
25 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 0 |
||||||
|
25 |
ABATTANT |
