Vehicle Exploded View - PIAGGIO MP3 400 ie LT - ie LT Sport 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

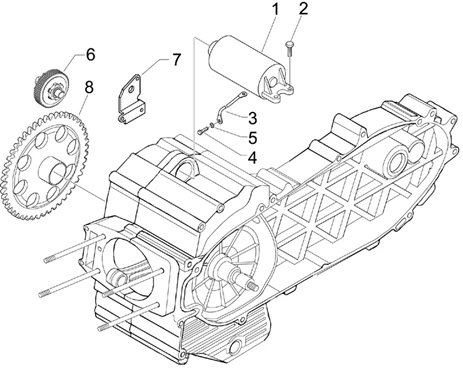

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/23/MP3_400_ie_LT_-_MP3_400_ie_LT_Sport_2008-2010_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/4/img/68634.jpg)
1 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC -82699R More informationQuantity required : 1 |
||||||
2 |
847645 - VIS M6X22 More informationQuantity required : 2 |
||||||
|
3 |
640688 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
4 |
581596 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/5/img/70635.jpg)
6 |
TORQUE LIMITER FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876835 More informationQuantity required : 1 |
||||||
|
7 |
872913 - TOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
8 |
ELECTRIC STARTER GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -82737R More informationQuantity required : 1 |
All the exploded views of this vehicle
-
