Vehicle Exploded View - PIAGGIO MP3 400 ie LT - ie LT Sport 2008-2010 PIAGGIO

Moteur : 01.11 GROUPE SUPPORT BALANCIERS

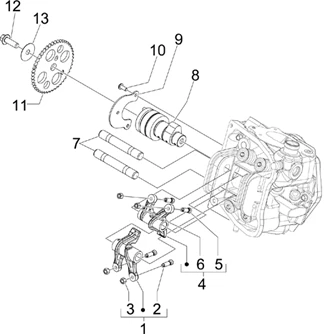

Groupe support balanciers
Search
EXHAUST ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260285

1
P2R reference P2R reference 68576
Maker reference Maker reference 8260285

EXHAUST ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260285

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

2
P2R reference P2R reference 68731
Maker reference Maker reference 82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

More information

Quantity required : 2

484819 - ECROU

3
P2R reference P2R reference 66667
Maker reference Maker reference 484819

484819 - ECROU

More information

Quantity required : 2

INTAKE CPL ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260275

4
P2R reference P2R reference 68575
Maker reference Maker reference 8260275

INTAKE CPL ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260275

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

5
P2R reference P2R reference 68731
Maker reference Maker reference 82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

More information

Quantity required : 2

484819 - ECROU

6
P2R reference P2R reference 66667
Maker reference Maker reference 484819

484819 - ECROU

More information

Quantity required : 2

ROCKER ARM SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 CC -827991

7
P2R reference P2R reference 68722
Maker reference Maker reference 827991

ROCKER ARM SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 CC -827991

More information

Quantity required : 2

CAMSHAFT "PIAGGIO GENUINE PART" 400 BEVERLY, MP3 -8725265-

8
P2R reference P2R reference 93146
Maker reference Maker reference 8725265

CAMSHAFT "PIAGGIO GENUINE PART" 400 BEVERLY, MP3 -8725265-

More information

Quantity required : 1

831167 - PLAQUETTE

9
P2R reference P2R reference 68950
Maker reference Maker reference 831167

831167 - PLAQUETTE

More information

Quantity required : 1

879186 - PLAQUETTE

9
P2R reference P2R reference 70710
Maker reference Maker reference 879186

879186 - PLAQUETTE

More information

Quantity required : 1

SCREW - (5x12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598

10
P2R reference P2R reference 72648
Maker reference Maker reference B014598

SCREW - (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598

More information

Quantity required : 3

TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 500 cc -879185

11
P2R reference P2R reference 70709
Maker reference Maker reference 879185

TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 500 CC -879185

More information

Quantity required : 1

1A000425 - VIS

12
P2R reference P2R reference 65837
Maker reference Maker reference 1A000425

1A000425 - VIS

More information

Quantity required : 1

845316 - RONDELLE

13
P2R reference P2R reference 69345
Maker reference Maker reference 845316

845316 - RONDELLE

More information

Quantity required : 1
