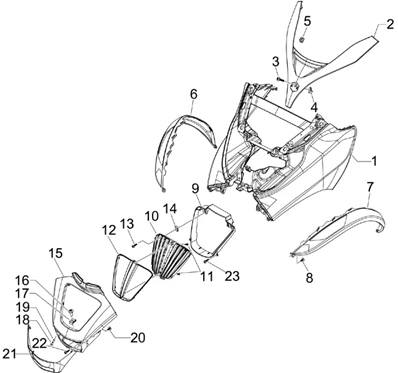

Vehicle Exploded View - PIAGGIO MP3 400 ie LT - ie LT Sport 2008-2010

	P2R reference	87972
	Maker reference	65370400RR

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 849/A -65370400RR

	P2R reference	90827
	Maker reference	67257100BR

FRONT SHIELD - "PIAGGIO GENUINE PART" 300-400-500 MP3 SPORT 2008>2014 WHITE 544 -67257100BR

	P2R reference	90830
	Maker reference	67257100DE

FRONT SHIELD "PIAGGIO GENUINE PART" 250-300-400 MP3 2008>2014 BLUE 222/A -67257100DE

	P2R reference	90831
	Maker reference	67257100EU

FRONT SHIELD - "PIAGGIO GENUINE PART" PIAGGIO 250-300-400 MP3 2009> GREY 711/B -67257100EU-

	P2R reference	90832
	Maker reference	67257100EV

FRONT SHIELD - "PIAGGIO GENUINE PART" 300-400-500 MP3 SPORT 2008>2014 GREY 713/B -67257100EV

	P2R reference	90840
	Maker reference	67257100ND

FRONT SHIELD - "PIAGGIO GENUINE PART" 300-400-500 MP3 SPORT 2008>2014 BLACK 79/A -67257100ND

	P2R reference	90841
	Maker reference	67257100NI

FRONT SHIELD - "PIAGGIO GENUINE PART" 300-400-500 MP3 SPORT 2008>2014 BLACK 80/B -67257100NI

	P2R reference	90845
	Maker reference	67257100XN2

FRONT SHIELD - "PIAGGIO GENUINE PART" 300-400-500 MP3 SPORT 2008>2014 BLACK 98/A -67257100XN2

	P2R reference
	Maker reference	6558145

TABLIER AV BRUT

	P2R reference	85084
	Maker reference	624432

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -624432-

	P2R reference	85087
	Maker reference	62443200BR

62443200BR - CACHE SUP.

	P2R reference	167062
	Maker reference	62443200DE

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -62443260DE

	P2R reference	85090
	Maker reference	62443200EU

62443200EU - CACHE SUP.

	P2R reference	85091
	Maker reference	62443200EV

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -62443200EV-

	P2R reference	85100
	Maker reference	62443200ND

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-400 MP3 BLACK GRAPHITE 79/A -62443200ND-

	P2R reference	85101
	Maker reference	62443200NI

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLACK 80/B -62443200NI

	P2R reference	85108
	Maker reference	62443200RR

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 849/A -62443200RR-

	P2R reference	85109
	Maker reference	62443200XN2

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLACK 98/B -62443200XN2

	P2R reference	167062
	Maker reference	62443260DE

FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -62443260DE

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888

	P2R reference	85121
	Maker reference	624436000C

FRONT RIGHT SIDE EDGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624436000C

	P2R reference	85120
	Maker reference	624435000C

FRONT LEFT SIDE EDGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624435000C

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	88951
	Maker reference	655794

COOLANT RADIATOR HOSE "PIAGGIO GENUINE PART" 125-250-300-400 MP3 2007>2013 -655794

	P2R reference	88950
	Maker reference	655793

RADIATOR GRID "PIAGGIO GENUINE PART" 125-250-300-400 MP3 -655793

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

	P2R reference	88949
	Maker reference	655792

RADIATOR FRAME "PIAGGIO GENUINE PART" 125-250-300-400 MP3 -655792

	P2R reference	90775
	Maker reference	672333

672333 - ENCADREMENT RADIATEUR

	P2R reference	90776
	Maker reference	672333000G

ENCADREMENT DE RADIATEUR PIAGGIO GENUINE PART 125-250-400 MP3 2008> -672333000G -

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	88952
	Maker reference	655795

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> RAW TO BE PAINTED -655795

	P2R reference	88952
	Maker reference	65579500BR

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> RAW TO BE PAINTED -655795

	P2R reference	88956
	Maker reference	65579500DE
	Replaced by référence 85084

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> BLUE 222/A -65579560DE

	P2R reference	88957
	Maker reference	65579500EU

RADIATOR SHIEL CLOSING "PIAGGIO GENUINE PART" 125-250 MP3 2008>, 300-500 MP3 2010> GREY 711/B -65579500EU

	P2R reference	88958
	Maker reference	65579500EV

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> GREY 713/B -65579500EV

	P2R reference	88952
	Maker reference	65579500ND

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> RAW TO BE PAINTED -655795

	P2R reference	88952
	Maker reference	65579500NI

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> RAW TO BE PAINTED -655795

	P2R reference	88970
	Maker reference	65579500RR

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-400 MP3 2008>, 300-500 MP3 2010> RED 849/A -65579500RR-

	P2R reference	88952
	Maker reference	65579500XN2

RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 125-250-400 MP3 2008>, 300-500 MP3 2010> RAW TO BE PAINTED -655795

	P2R reference	96280
	Maker reference	CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	66043
	Maker reference	259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

	P2R reference	85225
	Maker reference	624457

624457 - ENTRETOISE

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	96280
	Maker reference	CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

	P2R reference	88982
	Maker reference	655811000C

FRONT PROTECTION "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -655811000C

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793
