Vehicle Exploded View - PIAGGIO MP3 400 ie LT - ie LT Sport 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

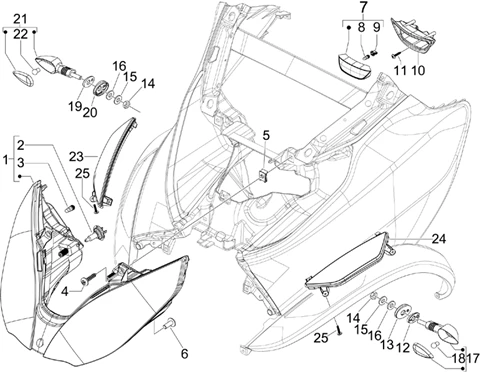

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/23/MP3_400_ie_LT_-_MP3_400_ie_LT_Sport_2008-2010_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/6/4/img/81764.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -58247R More informationQuantity required : 1 |
||||||
|
1 |
HEADLAMP "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -58247R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/1/img/67171.jpg)
2 |
LIGHT BULB 12V 55W H1 "PIAGGIO GENUINE PART" MP3, X10, PORTER, HEXAGON/MOTO-GUZZI 850-1200 NORGE/GILERA GP 800 -580141 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/8/5/img/86185.jpg)
3 |
LIGHT BULB 12V-5W BLUE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -641445- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/7/3/img/77773.jpg)
7 |
FRONT PARKING LIGHT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 50 STALKER -294433 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
294131 - AMPOULE 12V 3W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/7/img/66277.jpg)
9 |
294848 - PORTE AMPOULE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/8/1/img/88981.jpg)
10 |
SUPPORT FOR PARKING LIGHT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -655810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/8/9/img/88989.jpg)
12 |
655820 - SUPPORT CLIGNOTANT AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/9/0/img/88990.jpg)
13 |
655821 - SUPPORT CLIGNOTANT AVT DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
14 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
15 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
16 |
016626 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/2/img/67872.jpg)
17 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
18 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/9/1/img/88991.jpg)
19 |
SUPPORT FOR FRONT RIGHT FLASHER "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -655822 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/9/2/img/88992.jpg)
20 |
655823 - SUPPORT CLIGNOTANT AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/3/img/67873.jpg)
21 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402455 More informationQuantity required : 1 |
||||||
|
22 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/9/4/img/88994.jpg)
23 |
RIGHT TURN INDICATOR COVER "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -655825 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/9/3/img/88993.jpg)
24 |
LEFT TURN INDICATOR COVER "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -655824 More informationQuantity required : 1 |
||||||
|
25 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 6 |
