Vehicle Exploded View - PIAGGIO MP3 300 ie LT Touring 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

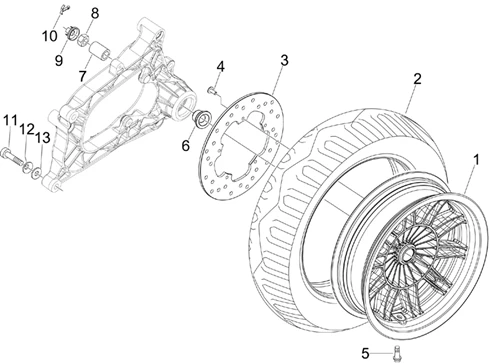

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/15/MP3_300_ie_LT_Touring_2011-2013_04.12.PNG)
1 |
650108 - ROUE ARR. More informationQuantity required : 1 |
||||||
|
1 |
667576 - ROUE ARR.3,75 X 14" More informationQuantity required : 1 |
||||||
|
2 |
666284 - PNEU 140/60-14" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/7/img/67087.jpg)
3 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" 125-250-400 MP3, X8, X-EVO, 400-500 BEVERLY, 500 X9, 125-350 X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -56498R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
4 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
5 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
6 |
848039 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
7 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 CC -597528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
8 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
9 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
9 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
10 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
11 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
12 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
