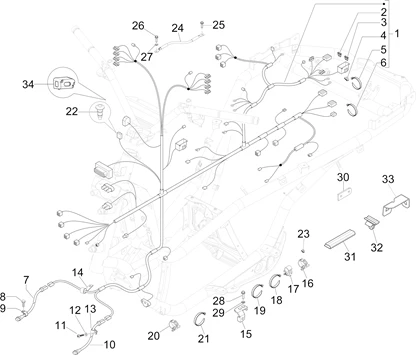

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/15/MP3_300_ie_LT_Touring_2011-2013_06.08.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/3/8/img/76138.jpg)
1 |
1D000097 - FAISCEAU CABLE More informationQuantity required : 1 |
|||||||||
1 |
642738 - FAISCEAU CABLES More informationQuantity required : 1 |
|||||||||
|
1 |
643444 - FAISCEAU CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
2 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
3 |
252945 - FUSIBLE 7,5A More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
3 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.jpg)
3 |
580561 - FUSIBLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/2/img/67302.jpg)
4 |
584520 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/7/img/68547.jpg)
6 |
825481 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/7/img/86397.jpg)
7 |
CABLE BUNDLE - FOR ABS RIGHT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -642549 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
8 |
430264 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
9 |
573918 - COLLIER More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/8/img/86398.jpg)
10 |
CABLE BUNDLE - FOR ABS LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -642550 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
12 |
013963 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
13 |
271477 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/7/img/111477.jpg)
14 |
D9004461193 - COLLIER More informationQuantity required : 2 |
|||||||||
|
15 |
639843 - PATTES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
16 |
CM006903 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
17 |
CM013201 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
18 |
257134 - COLLIER More informationQuantity required : 13 |
|||||||||
|
19 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 19 |
|||||||||
|
20 |
CM006907 - RESSOT More informationQuantity required : 1 |
|||||||||
|
21 |
257134 - COLLIER More informationQuantity required : 2 |
|||||||||
|
22 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
|||||||||
|
22 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
|||||||||
|
23 |
584520 - RESSORT More informationQuantity required : 2 |
|||||||||
|
24 |
584843 - CABLE More informationQuantity required : 1 |
|||||||||
|
25 |
641204 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
26 |
484123 - VIS More informationQuantity required : 1 |
|||||||||
|
27 |
224664 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
28 |
484123 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
29 |
012528 - RONDELLE S01252800 More informationQuantity required : 1 |
|||||||||
|
30 |
641192 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
31 |
CM077703 - PROTECTION More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
32 |
639560 - RESSORT More informationQuantity required : 1 |
|||||||||
|
33 |
642068 - SUPPORT CONNECTEUR More informationQuantity required : 1 |
|||||||||
|
34 |
1B0003000000C - SOUTIEN AUX USB More informationQuantity required : 1 |
|||||||||
