Vehicle Exploded View - PIAGGIO MP3 300 ie LT Touring 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

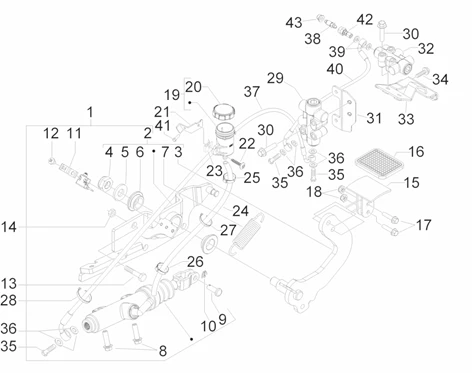

Instalation du freins - transmisisons : 05.05 GROUPE PÉDALES - LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/15/MP3_300_ie_LT_Touring_2011-2013_05.05.PNG)
1 |
665581 - SUPPORT PEDALE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/9/img/87219.jpg)
2 |
BRAKE PEDAL GUARD "PIAGGIO GENUINE PART" PIAGGIO 300-350-400-500 MP3 -651044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/6/9/img/95769.jpg)
3 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 300-400-500 MP3 -CM082901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
4 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
5 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
650636 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/1/3/img/87113.jpg)
7 |
650670 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
8 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/1/0/img/87110.jpg)
9 |
650651 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.jpg)
10 |
012761 - GOUPILLE S01276100 More informationQuantity required : 1 |
||||||
|
11 |
650646 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
12 |
018644 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
13 |
031116 - BOULON More informationQuantity required : 3 |
||||||
|
14 |
709052 - ECROU More informationQuantity required : 3 |
||||||
|
15 |
650711 - FOURCHE PEDALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/3/5/img/76635.jpg)
16 |
228793 - EMBOUT PEDALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
17 |
582469 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
18 |
195482 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/6/9/img/77469.jpg)
19 |
MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/3/img/79623.jpg)
20 |
498431 - BOUCHON RESERV LOOCK More informationQuantity required : 1 |
||||||
|
21 |
650676 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
22 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
23 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 1 |
||||||
|
24 |
650772 - TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
25 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
26 |
CM002907 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
27 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
28 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
29 |
CM082802 - VOLET REG.PRESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
30 |
1A011120 - VIS More informationQuantity required : 4 |
||||||
|
30 |
1A011120 - VIS More informationQuantity required : 4 |
||||||
|
31 |
650625 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/6/6/img/95766.jpg)
32 |
CM082803 - VOLET REG.PRESS. More informationQuantity required : 1 |
||||||
|
33 |
650648 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
34 |
B016777 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
35 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
36 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 10 |
||||||
|
37 |
650720 - CANALISATEUR GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/7/1/img/87271.jpg)
38 |
651461 - VIS DE PURGE FREIN More informationQuantity required : 1 |
||||||
|
39 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 6 |
||||||
|
40 |
650721 - CANALISATEUR GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
41 |
122675 - VIS More informationQuantity required : 1 |
||||||
|
42 |
597033 - JOINT FREIN More informationQuantity required : 1 |
||||||
|
43 |
651462 - CAPUCHON More informationQuantity required : 1 |
