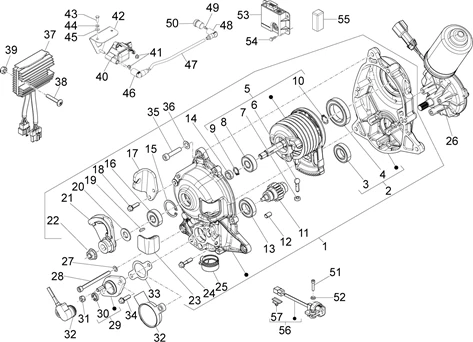

Vehicle Exploded View - PIAGGIO MP3 300 ie LT Touring 2011-2013

	P2R reference	90183
	Maker reference	667185

ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 - 667185

	P2R reference	93048
	Maker reference	846939

846939 - BOITE DISP.ANTIROLLIO

	P2R reference	92733
	Maker reference	82627R

82627R - ROULEMENT

	P2R reference	93050
	Maker reference	846977

846977 - ROULEMENT

	P2R reference	86866
	Maker reference	648641

648641 - GR.RESSORT

	P2R reference	86870
	Maker reference	648700

648700 - TIRANT

	P2R reference	65474
	Maker reference	0202065

020206 - ECROU S02020600

	P2R reference	92983
	Maker reference	843701

843701 - ROULEMENT

	P2R reference	63812
	Maker reference	0064125

006412 - CIRCLIPS S00641200

	P2R reference	109777
	Maker reference	0064145

006414 - CIRCLIPS S00641400

	P2R reference	90166
	Maker reference	667172

667172 - AXE PIGNON

	P2R reference	93051
	Maker reference	846980

846980 - AXE PIGNON

	P2R reference	66142
	Maker reference	277916

CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916

	P2R reference	92733
	Maker reference	82627R

82627R - ROULEMENT

	P2R reference	93047
	Maker reference	846834

846834 - ENTRETOISE

	P2R reference	63822
	Maker reference	0066325

006632 - ANNEAU ELAST. S00663200

	P2R reference	92983
	Maker reference	843701

843701 - ROULEMENT

	P2R reference	86897
	Maker reference	649025

649025 - PLAQUE

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	63721
	Maker reference	000267

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267

	P2R reference	86613
	Maker reference	646516

646516 - ENTRETOISE

	P2R reference	86953
	Maker reference	649402

649402 - LEVIER

	P2R reference	66225
	Maker reference	289519

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

	P2R reference	86682
	Maker reference	647190

647190 - BOUCHON

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

	P2R reference	86872
	Maker reference	648800

648800 - JOINT

	P2R reference	81605
	Maker reference	58159R

ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -58159R

	P2R reference	66605
	Maker reference	481032

481032 - VIS DE FILTRE FX

	P2R reference	63838
	Maker reference	0069665

006966 - RONDELLE S00696600

	P2R reference	93049
	Maker reference	846942

846942 - COUVERCLE DISP.ANTIROLLIO

	P2R reference	90165
	Maker reference	667171

667171 - BAGUE ETANCHEITEE

	P2R reference	65818
	Maker reference	195482

195482 - ECROU

	P2R reference	146568
	Maker reference	6425555

ROTARY SENSOR "PIAGGIO GENUINE PART" 125-300-500 MP3 -6425555

	P2R reference	76277
	Maker reference	1R000114

SENSOR ROTARY REPLACEMENT KIT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1R000114

	P2R reference	86947
	Maker reference	649367

649367 - JOINT

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	78329
	Maker reference	319538

319538 - VIS

	P2R reference	63803
	Maker reference	0061255

006125 - RONDELLE S00612500

	P2R reference	67940
	Maker reference	641709

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125-300-350 MP3, BEVERLY, 125-250-300 GTS/APRILIA 300 ATLANTIC -641709

	P2R reference	66041
	Maker reference	259708

259708 - BOULON

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	86083
	Maker reference	641007

IGNITION COIL "PIAGGIO GENUINE PART" 125 MP3 IE 2008>, 300 MP3 2010> -641007

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	86130
	Maker reference	641175

641175 - SUPPORT BOBINE

	P2R reference	65640
	Maker reference	0310895

031089 - BOULON S03108900

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	63803
	Maker reference	0061255

006125 - RONDELLE S00612500

	P2R reference	67903
	Maker reference	641040

SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125 CC -641040

	P2R reference	65668
	Maker reference	0803415

HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341

	P2R reference	70969
	Maker reference	969348

SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -969348

	P2R reference	67942
	Maker reference	641725

INSULATION SHELL FOR SPARK PLUG CAP "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125CC -6417256

	P2R reference	67937
	Maker reference	641643

SPARK PLUG PROTECTION CLAMP "PIAGGIO GENUINE PART" -641643

	P2R reference	110679
	Maker reference	615795

615795 - VIS

	P2R reference	73681
	Maker reference	0069635

006963 - RONDELLE

	P2R reference	85952
	Maker reference	640439

ELECTRONIC PARKING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -640439

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	67871
	Maker reference	1D0013915

FLASHER UNIT "PIAGGIO GENUINE PART" 125-250-400 X-EVO, 125-250-300-400-500 MP3, 125-350-500 X10, 250-500 BEVERLY/GILERA 500 FUOCO -1D0013915

	P2R reference	85879
	Maker reference	640063

END OF THE STROKE SWITCH - SUSPENSION BLOCKING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640063

	P2R reference	85755
	Maker reference	639560

639560 - RESSORT
