Vehicle Exploded View - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

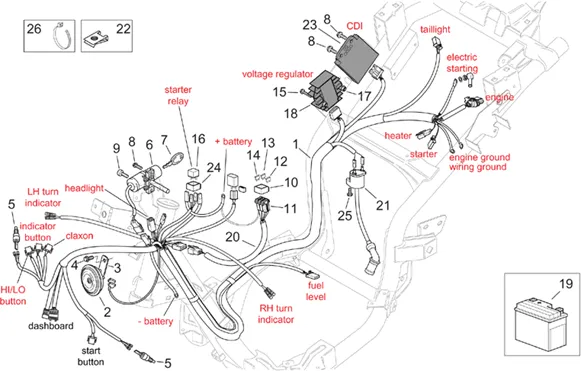

Chassis : 28.36 CIRCUIT ELECTRIQUE - RETRO'
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_28.36.PNG)
1 |
AP8224310 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8124530 - KLAXON; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8134627 - RESSORT SUPPORT; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
4 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
5 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 2 |
|||||||||
|
6 |
AP8124886 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
7 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
9 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
10 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
|||||||||
|
11 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
12 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 1 |
|||||||||
|
13 |
CM225607-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
14 |
495357 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
16 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 5 |
|||||||||
|
18 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
19 |
BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662 More informationQuantity required : 1 |
|||||||||
|
20 |
AP8127233 - CABLAGGIO RICARICA More informationQuantity required : 1 |
|||||||||
|
21 |
BOBINE H.T. |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
22 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
|||||||||
|
23 |
CDI UNIT "PIAGGIO GENUINE PART" APRILIA 125 MOJITO/PIAGGIO 125 SKIPPER WITHOUT ANTI-STARTING SYSTEM -58102R- More informationQuantity required : 1 |
|||||||||
|
23 |
58100R - DISPOSITIF More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
24 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
25 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
26 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 1 |
|||||||||
