Vehicle Exploded View - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

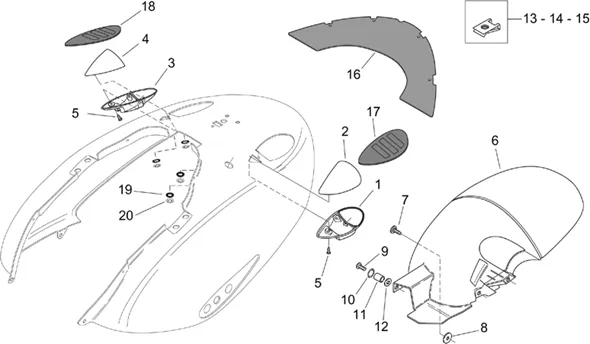

Chassis : 28.16 CARR. ARRIÉRE - GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_28.16.PNG)
1 |
AP8248889-LOG. CLIGNOT. G BLACK More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248981 - COUV. CLIG.G.P.BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249218-COVER CLIGNOT. G BLACK More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258124 - COUV. CLIG.G.P.BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8268418 - COPERCHIO IND.DIR.POST.SX V.BI More informationQuantity required : 1 |
|||||||||
|
3 |
AP8149166-BRACKET LAMP More informationQuantity required : 1 |
|||||||||
|
4 |
AP8268417 - COPERCHIO IND.DIR.POST.DX V.BI More informationQuantity required : 1 |
|||||||||
|
4 |
AP8248977-COUV. CLIG. D. P. BLUE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8249217-COVER CLIGNOT. D BLACK More informationQuantity required : 1 |
|||||||||
|
4 |
AP8258123 - COUV. CLIG.D.P.BLEU; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
5 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
|||||||||
|
6 |
AP8156170-MUDGUARD POSTERIORE More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
7 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
8 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
|||||||||
|
10 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
11 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
13 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
16 |
AP8168954 - PROTEZIONE ANTIACQUA POST. More informationQuantity required : 1 |
|||||||||
|
17 |
AP8258974 - COPERCHIO SX INDIC.DIREZ.POST. More informationQuantity required : 1 |
|||||||||
|
17 |
AP8178237 - COPERCHIO IND.DIR.POST.SX V.AZ More informationQuantity required : 1 |
|||||||||
|
17 |
AP8184483 - COUVERCLE CLIGNOT.G AR BLANC More informationQuantity required : 1 |
|||||||||
|
18 |
AP8178236 - COPERCHIO IND.DIR.POST.DX V.AZ More informationQuantity required : 1 |
|||||||||
|
18 |
AP8184482 - COUVERCLE CLIGNOT.D BLANC More informationQuantity required : 1 |
|||||||||
|
18 |
AP8258973 - COPERCHIO DX INDIC.DIREZ.POST. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
19 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
20 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
|||||||||
