Vehicle Exploded View - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

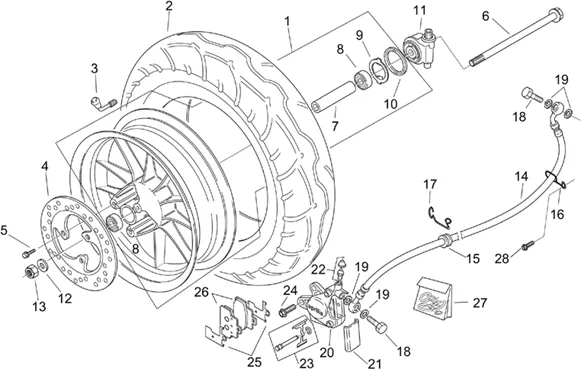

Chassis : 28.31 ROUE AV. - CUSTOM
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_28.31.PNG)
1 |
AP8208601 - ROUE AV NUE More informationQuantity required : 1 |
||||||
|
3 |
AP8201679-VALVE TUBELESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.jpg)
4 |
BRAKE DISC OEM PIAGGIO 50 SCARABEO, RALLY, SR, GULLIVER, 125 LEONARDO, MOJITO-AP8213231 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/3/img/50943.jpg)
5 |
SCREW BTR HEAD BOMBEE (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152056 More informationQuantity required : 3 |
||||||
|
6 |
AP8225356 - AXE DE ROUE AV More informationQuantity required : 1 |
||||||
|
7 |
AP8225357-SPACER FRONT WHEEL More informationQuantity required : 1 |
||||||
|
8 |
BEARING (12X32X10) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125 APRILIA-AP8225123 More informationQuantity required : 2 |
||||||
|
9 |
AP8120865-ENTRA? NEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/4/img/47744.jpg)
10 |
BUSH (40X50X4) D'ETANCHEITE FRONT WHEEL OEM PIAGGIO APRILIA 125-250 LEONARDO, 50-125 MOJITO, 650 PEGASO, 50 RALLY, 125-250 SCARABEO-AP8125743 More informationQuantity required : 1 |
||||||
|
11 |
AP8202141 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
12 |
WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018 More informationQuantity required : 1 |
||||||
|
13 |
AP8150373-NUT AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
14 |
AP8213426 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
15 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
16 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
17 |
AP8121889-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
19 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
20 |
AP8113858 - PINCE FREIN AV More informationQuantity required : 1 |
||||||
|
21 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
22 |
AP8113321-PURGE + CAPUCHON More informationQuantity required : 1 |
||||||
|
23 |
AP8213461 - GOUJON+RESSORT PINCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
24 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
25 |
INSERT ANTI-BRUIT DE BRAKE PADS OEM PIAGGIO-AP8113677 More informationQuantity required : 1 |
||||||
|
26 |
AP8213460-PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
27 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
28 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
