Vehicle Exploded View - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

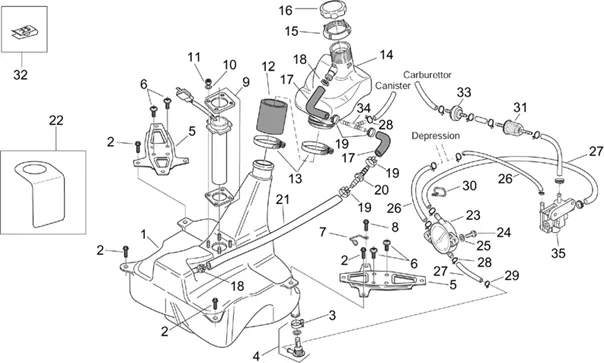

Chassis : 28.23 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_28.23.PNG)
1 |
AP8139872 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
AP8152345-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
3 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
4 |
FITTING DE TANK OEM PIAGGIO APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJIT, 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-AP8104071 More informationQuantity required : 1 |
||||||
|
5 |
AP8234156 - ETRIER REP-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
|
7 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
9 |
AP8224079 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
10 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
||||||
|
12 |
AP8144216-SLEEVE * More informationQuantity required : 1 |
||||||
|
13 |
AP8102701 - FASCETTA D.40-60 X 9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/9/6/img/49796.jpg)
14 |
TANK PRIMAIRE OEM PIAGGIO APRILIA 125 MOJITO-AP8144625 More informationQuantity required : 1 |
||||||
|
14 |
AP8144626 - BOCCHETTONE BENZINA More informationQuantity required : 1 |
||||||
|
15 |
AP8139962 - BAGUE GOULOT ESSENCE; More informationQuantity required : 1 |
||||||
|
16 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
17 |
AP8144283 - TUYAU PREFORME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/6/img/71206.jpg)
18 |
CLAMP CLIC (16. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8102903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
19 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 1 |
||||||
|
20 |
AP8104129 - RACCORD A DEUX VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/3/img/71423.jpg)
21 |
HOSE OEM PIAGGIO 125-150-200 SCARABEO ROTAX 1999 > 2004-AP8120956 More informationQuantity required : 1 |
||||||
|
22 |
AP8148598 - PROTEC.POMPE ESS.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
23 |
FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
24 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
25 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
|
26 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
27 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
28 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
29 |
AP8102377-CLAMP More informationQuantity required : 1 |
||||||
|
30 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/3/img/71223.jpg)
31 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 SPORT-CITY, MOJITO, SCARABEO, ATLANTIC -AP8104406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
32 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
33 |
VALVE DE RETENUE CIRCUIT ALIMENTATION OEM PIAGGIO 125 MP3, X8, X-EVO, 125-250 BEVERLY, X9/GILERA 125 RUNNER 4T/APRILIA 125-250 ATLANTIC, 125 MOJITO, 1000 RSV-2-AP8104594 More informationQuantity required : 1 |
||||||
|
34 |
AP8104667 - RACCORDO A "T" D.10.8.10 More informationQuantity required : 1 |
||||||
|
35 |
AP8104096-ROBINET FUEL More informationQuantity required : 1 |
