Vehicle Exploded View - PIAGGIO MEDLEY 125 MEDLEY 125 cc Euro 5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

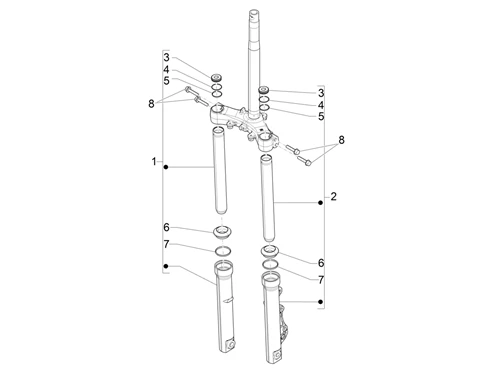

Suspensions - roues : 04.08 COMPOSANTS DE LA FOURCHE (SHOWA)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/977/MEDLEY_125_cc_Euro_5_2021_(EMEA)_04.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/5/8/img/162858.JPG)
1 |
1C004150 - RIGHT COMPL LEG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/5/9/img/162859.JPG)
2 |
1C004151 - COMPL LEFT LEG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/6/0/img/162860.jpg)
3 |
1C004149 - BOUCHON More informationQuantity required : 2 |
||||||
4 |
1C004139 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
5 |
1C004140 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
6 |
1C004147 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
7 |
1C004146 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
8 |
1C004148 - HEXAG HEAD SCREW More informationQuantity required : 4 |
