Vehicle Exploded View - PIAGGIO MEDLEY 125 MEDLEY 125 cc Euro 5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

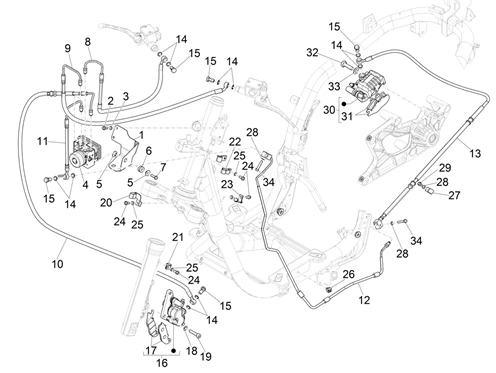

Instalation du freins - transmisisons : 05.02 TUYAUS DU FREINS - ETRIERS DE FREIN (ABS)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/977/MEDLEY_125_cc_Euro_5_2021_(EMEA)_05.02.png)
1 |
1C001657 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
874554 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
||||||
|
4 |
1C001330 - BOITIER COMMANDE ABS More informationQuantity required : 1 |
||||||
|
5 |
1C000870 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
6 |
939278 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
018639 - VIS More informationQuantity required : 2 |
||||||
|
8 |
1C004604 - FLEX HOSE RIGHT MASTER CYLINDER HECU More informationQuantity required : 1 |
||||||
|
9 |
1C004605 - FLEX HOSE LEFT MASTER CYLINDER HECU More informationQuantity required : 1 |
||||||
|
10 |
1C002056 - TUYAUX FREIN More informationQuantity required : 1 |
||||||
|
11 |
1C002055 - TUYAU ABS-PINCE More informationQuantity required : 1 |
||||||
|
12 |
1C001407 - TUYAUX FREIN More informationQuantity required : 1 |
||||||
|
13 |
1C004583 - DURIT DE FREIN ETRIER ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
14 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
15 |
1C002059R - VIS More informationQuantity required : 5 |
||||||
|
16 |
CM256504 - PINCE FREIN AVANT More informationQuantity required : 1 |
||||||
|
16 |
CM256502 - ETRIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/4/9/4/img/127494.jpg)
17 |
FRONT BRAKE PADS -"PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -1C000760 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
19 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 2 |
||||||
|
20 |
1C002008 - COLLIER More informationQuantity required : 1 |
||||||
|
21 |
1C001420 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
1C002078 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
1C002009 - COLLIER More informationQuantity required : 1 |
||||||
|
24 |
874554 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
25 |
006966 - RONDELLE S00696600 More informationQuantity required : 4 |
||||||
|
26 |
179013 - RESSORT More informationQuantity required : 1 |
||||||
|
27 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
|
28 |
006966 - RONDELLE S00696600 More informationQuantity required : 3 |
||||||
|
29 |
874554 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
30 |
CM294412 - ETRIER FREIN D. More informationQuantity required : 1 |
||||||
|
30 |
CM294408 - ETRIER FREIN D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/5/img/68005.jpg)
31 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-300 MP3 REAR, 125-250-300 X7 REAR, 125-250 X9-EVO FRONT-RIGHT, 125-250 X-EVO REAR, 400 X8, X-EVO FRONT RIGHT (BREMBO) (PAIR) -647079 More informationQuantity required : 1 |
||||||
|
32 |
B004264 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
33 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
34 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 2 |
