Vehicle Exploded View - PIAGGIO MEDLEY 125 MEDLEY 125 cc Euro 5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

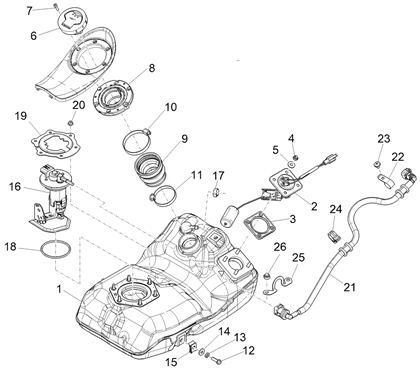

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/977/MEDLEY_125_cc_Euro_5_2021_(EMEA)_02.47.png)
1 |
1B002950 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/2/2/0/img/140220.jpg)
2 |
1D001226 - INDICATEUR D'ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/6/4/img/109364.jpg)
3 |
676200 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
709116 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
013880 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/1/3/img/149213.jpg)
6 |
1B004018 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
7 |
959559 - VIS More informationQuantity required : 6 |
||||||
|
8 |
1B003970 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/6/5/img/91465.jpg)
9 |
FUEL TANK SLEEVE "PIAGGIO GENUINE PART" 125-300-350 BEVERLY, 125 MEDLEY, 50 NRG POWER/GILERA 50-125 RUNNER -673778 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/9/img/72879.JPG)
10 |
CM001920 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
CM001919 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
12 |
018639 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
|
14 |
013880 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/3/8/img/166538.jpg)
16 |
1D002701 - POMPE A CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
17 |
CM001901 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/2/6/img/151626.jpg)
18 |
1B002953 - JOINT More informationQuantity required : 1 |
||||||
|
19 |
1B002952 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
20 |
241937 - ECROU More informationQuantity required : 6 |
||||||
|
21 |
1B005553R - TUBE RESERVOIR More informationQuantity required : 1 |
||||||
|
22 |
1B001321 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
23 |
969296 - BOULON More informationQuantity required : 1 |
||||||
|
24 |
CM006911 - RESSORT More informationQuantity required : 1 |
||||||
|
25 |
1B004100 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
26 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 1 |
