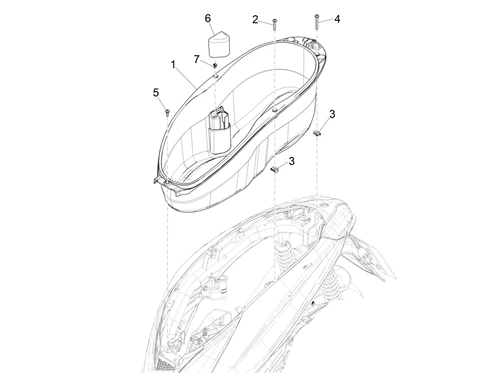

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/977/MEDLEY_125_cc_Euro_5_2021_(EMEA)_02.34.png)
1 |
1B006371 - COMPART.P-CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/9/img/73369.jpg)
2 |
CM179304 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
5 |
CM179306 - VIS More informationQuantity required : 1 |
||||||
|
6 |
1B002268 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
7 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 1 |
