Vehicle Exploded View - PIAGGIO MEDLEY 125 ABS E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

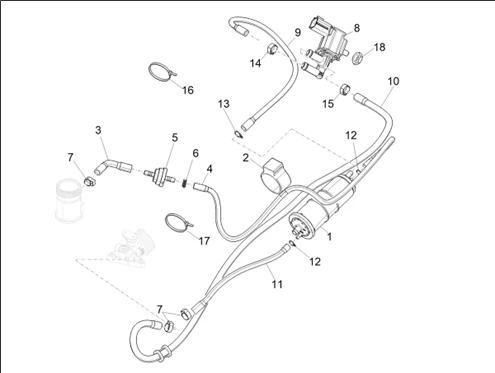

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1264/Medley_125_ABS_E5_2024_EMEA_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
1B002848 - CANISTER More informationQuantity required : 1 |
||||||
2 |
1B002849 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
3 |
1B003220R - HOSE SAE J30 1 4 L 100 More informationQuantity required : 1 |
||||||
|
4 |
CM283433 - HOSE More informationQuantity required : 1 |
||||||
|
5 |
CM292102 - SOUPAPE PRESSION More informationQuantity required : 1 |
||||||
|
6 |
CM283704 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
7 |
CM001914 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
8 |
1B008603 - AIR VALVE More informationQuantity required : 1 |
||||||
|
9 |
CM283426 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
1B012377R - HOSE SAE J30 L=480 More informationQuantity required : 1 |
||||||
|
11 |
CM283407 - TUYAU More informationQuantity required : 1 |
||||||
|
12 |
CM283701 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
CM283702 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
14 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
15 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
16 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
17 |
1D001143 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
18 |
241936 - ECROU More informationQuantity required : 1 |
