Vehicle Exploded View - PIAGGIO MEDLEY 125 ABS E5+ 2024 (EMEA) PIAGGIO

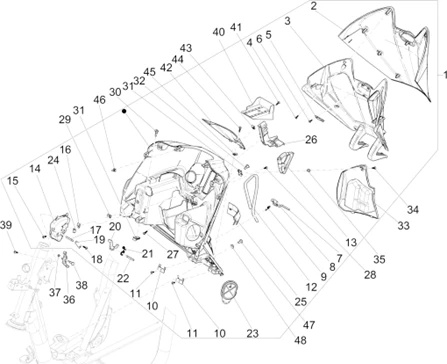

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
Coffre avant - Contre-tablier
Search
GLOVES BOX "PIAGGIO GENUINE PART" -1B0068225000C

1
P2R reference P2R reference 139821
Maker reference Maker reference 1B0068225000C

GLOVES BOX "PIAGGIO GENUINE PART" -1B0068225000C

More information

Quantity required : 1

1B0016810000C - ABATANT COFFRE

2
P2R reference P2R reference 139780
Maker reference Maker reference 1B0016810000C

1B0016810000C - ABATANT COFFRE

More information

Quantity required : 1

1B001709 - CONTRE PORTE

3
P2R reference P2R reference 139820
Maker reference Maker reference 1B001709

1B001709 - CONTRE PORTE

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

4
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

More information

Quantity required : 9

DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420

5
P2R reference P2R reference 66002
Maker reference Maker reference 252420

DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420

More information

Quantity required : 1

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

6
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 2

577400 - AXE

7
P2R reference P2R reference 81222
Maker reference Maker reference 577400

577400 - AXE

More information

Quantity required : 1

577861 - LEVIER

8
P2R reference P2R reference 67167
Maker reference Maker reference 577861

577861 - LEVIER

More information

Quantity required : 1

577399 - RESSORT

9
P2R reference P2R reference 81221
Maker reference Maker reference 577399

577399 - RESSORT

More information

Quantity required : 1

DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614

10
P2R reference P2R reference 66022
Maker reference Maker reference 257614

DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

11
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

More information

Quantity required : 2

CM006315 - JOINT DES COFFRE

12
P2R reference P2R reference 127734
Maker reference Maker reference CM006315

CM006315 - JOINT DES COFFRE

More information

Quantity required : 1

HAND BAG HOOK "PIAGGIO GENUINE PART" 125-300 JOURBAN 2012>, 300-350-500 MP3 2014>, 125-300-350 BEVERLY 2010>, 125 MEDLEY 2016> -1B006813

13
P2R reference P2R reference 162804
Maker reference Maker reference 1B006813

HAND BAG HOOK "PIAGGIO GENUINE PART" 125-300 JOURBAN 2012>, 300-350-500 MP3 2014>, 125-300-350 BEVERLY 2010>, 125 MEDLEY 2016> -1B006813

More information

Quantity required : 1

1B001868 - SUPPORT

14
P2R reference P2R reference 139840
Maker reference Maker reference 1B001868

1B001868 - SUPPORT

More information

Quantity required : 1

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

15
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

16
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

AXLE FOR GLOVEBOX HOOK LOCK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -575021

17
P2R reference P2R reference 67110
Maker reference Maker reference 575021

AXLE FOR GLOVEBOX HOOK LOCK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -575021

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

18
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 1

464620 - RESSORT

19
P2R reference P2R reference 66538
Maker reference Maker reference 464620

464620 - RESSORT

More information

Quantity required : 1

HOOK - FOR FRONT GLOVE BOX "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -575607

20
P2R reference P2R reference 67119
Maker reference Maker reference 575607

HOOK - FOR FRONT GLOVE BOX "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -575607

More information

Quantity required : 1

GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658

21
P2R reference P2R reference 140004
Maker reference Maker reference 1B003658

GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658

More information

Quantity required : 1

577400 - AXE

22
P2R reference P2R reference 81222
Maker reference Maker reference 577400

577400 - AXE

More information

Quantity required : 1

1B002864 - TAMPON

23
P2R reference P2R reference 139919
Maker reference Maker reference 1B002864

1B002864 - TAMPON

More information

Quantity required : 1

299693 - RESSORT

24
P2R reference P2R reference 78073
Maker reference Maker reference 299693

299693 - RESSORT

More information

Quantity required : 1

1B0020730000C - CADRE INTERIEUR COFFRE

25
P2R reference P2R reference 139878
Maker reference Maker reference 1B0020730000C

1B0020730000C - CADRE INTERIEUR COFFRE

More information

Quantity required : 1

1B003433 - SUPPORT

26
P2R reference P2R reference 139973
Maker reference Maker reference 1B003433

1B003433 - SUPPORT

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

27
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 1

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

28
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

29
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201

30
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

31
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

32
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 1

1B0017170000C - ABATTANT

33
P2R reference P2R reference 139823
Maker reference Maker reference 1B0086870000C

1B0017170000C - ABATTANT

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

34
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

More information

Quantity required : 1

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

35
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

More information

Quantity required : 1

1B002031 - LEVIER SERRURE

36
P2R reference P2R reference 139871
Maker reference Maker reference 1B002031

1B002031 - LEVIER SERRURE

More information

Quantity required : 1

577620 - ECROU

37
P2R reference P2R reference 67162
Maker reference Maker reference 577620

577620 - ECROU

More information

Quantity required : 1

299972 - VIS

38
P2R reference P2R reference 66314
Maker reference Maker reference 299972

299972 - VIS

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

39
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 1

1B001859 - SUPPORT DE BATTERIE

40
P2R reference P2R reference 139828
Maker reference Maker reference 1B001859

1B001859 - SUPPORT DE BATTERIE

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

41
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 1

1B006698400N22 - CENTRAL FRONT COVER

42
P2R reference P2R reference 216382
Maker reference Maker reference 1B006698400N22

1B006698400N22 - CENTRAL FRONT COVER

More information

Quantity required : 1

1B006698 - FERMETURE CENTRALE

42
P2R reference P2R reference 162806
Maker reference Maker reference 1B006698

1B006698 - FERMETURE CENTRALE

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

43
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

44
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

45
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

46
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 2

013880 - RONDELLE

47
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

013880 - RONDELLE

More information

Quantity required : 1

CM179301 - VIS

48
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

CM179301 - VIS

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
