Vehicle Exploded View - PIAGGIO MEDLEY 125 ABS E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

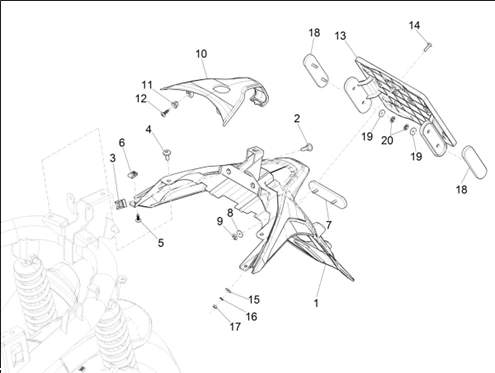

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1264/Medley_125_ABS_E5_2024_EMEA_02.37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/3/5/img/166535.jpg)
1 |
1B0063670000C - BAVETTE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/7/6/img/127676.jpg)
7 |
5A000498 - CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/7/3/img/127673.jpg)
8 |
5A000387 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/0/6/img/140406.jpg)
9 |
5A000388 - PLAQUE More informationQuantity required : 2 |
||||||
10 |
1B001704400NS - REAR BODY CLOSING More informationQuantity required : 1 |
||||||
|
10 |
1B001704400BR - FERMETURE ARRIERE DES CARENAGES More informationQuantity required : 1 |
||||||
|
10 |
1B001704400ND - REAR BODY CLOSING More informationQuantity required : 1 |
||||||
|
10 |
1B001704700D27 - REAR BODY CLOSING More informationQuantity required : 1 |
||||||
|
10 |
1B001704700L10 - REAR BODY CLOSING More informationQuantity required : 1 |
||||||
|
10 |
1B001704300G14 - FERMETURE ARRIERE DES CARENAGES More informationQuantity required : 1 |
||||||
|
10 |
1B001704 - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
11 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
|
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/9/9/img/156099.jpg)
13 |
1B006497 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
14 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
15 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
16 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
17 |
020104 - ECROU S02010400 More informationQuantity required : 3 |
||||||
|
18 |
5A000498 - CATADIOPTRE More informationQuantity required : 2 |
||||||
|
19 |
5A000387 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
20 |
5A000388 - PLAQUE More informationQuantity required : 4 |
