Vehicle Exploded View - PIAGGIO MEDLEY 125 ABS E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

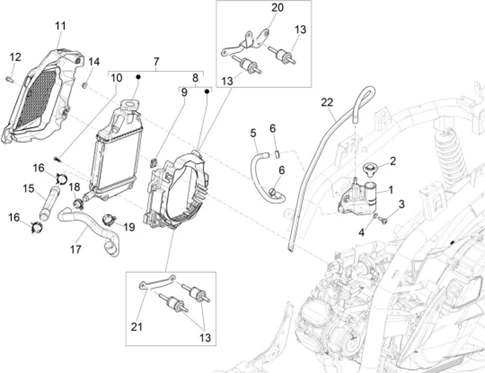

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1264/Medley_125_ABS_E5_2024_EMEA_02.55.png)
1 |
1B002267 - RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
1B002766 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 1 |
||||||
|
5 |
CM278701 - TUYAU ESSENCE L=280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
6 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/7/img/146267.jpg)
7 |
1A008047 - RADIATEUR More informationQuantity required : 1 |
||||||
|
8 |
1A007893 - PRISE AIR GAUCHE More informationQuantity required : 1 |
||||||
|
9 |
1A003988 - PLAQUETTE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/7/7/img/174477.jpg)
11 |
1A019945 - RADIATOR COVER More informationQuantity required : 1 |
||||||
|
12 |
1A006359 - VIS M6X16 More informationQuantity required : 4 |
||||||
|
13 |
1A021966R - RADIATOR SUPPORT SPACER More informationQuantity required : 4 |
||||||
|
14 |
874558 - ECROU More informationQuantity required : 4 |
||||||
|
15 |
1A006075 - TUYAU EAU More informationQuantity required : 1 |
||||||
|
16 |
CM226910 - COLLIER FBS 24/12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/1/img/195881.jpg)
17 |
1A019402 - TUBE POMPE RADIATEUR More informationQuantity required : 1 |
||||||
|
18 |
CM226903 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
CM226911 - COLLIER FBS 26/12 More informationQuantity required : 1 |
||||||
|
20 |
1A026956 - RADIATOR UPPER BRACKET WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/0/img/195880.jpg)
21 |
1A017430 - RADIATOR LOWER BRACKET More informationQuantity required : 1 |
||||||
|
22 |
CM001444 - TUYAU RENIFLARD More informationQuantity required : 1 |
