Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

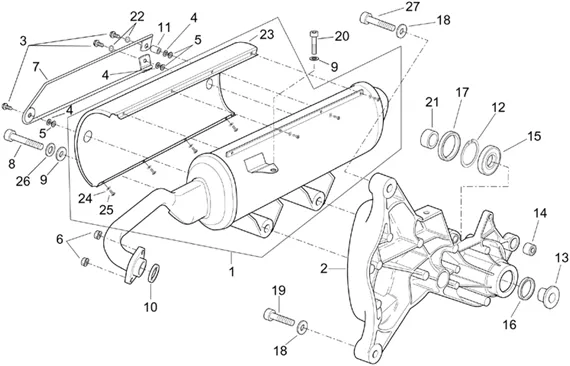

Chassis : 28.31 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/251/Leonardo_250_(eng.Yamaha)_99-01_28.31.PNG)
1 |
AP8119750 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
Support pot d'échappement cpl.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/6/img/97096.jpg)
3 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/2/img/71742.jpg)
4 |
WASHER THERMOFUGE D6 SHEET METAL EXHAUST OEM PIAGGIO 500 MP3, BEVERLY/APRILIA 500 SCARABEO, ATLANTIC-AP8144064 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/3/img/71743.jpg)
5 |
WASHER RUBBER (8X14X2) OEM PIAGGIO COMMON A LA RANGE-AP8144065 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
6 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
6 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
7 |
AP8119424-PROT. SILENCER CHROME More informationQuantity required : 1 |
||||||
|
8 |
AP8150392-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
9 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 3 |
||||||
|
10 |
AP8119471-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
11 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/7/img/97067.jpg)
12 |
CLIPS/CIRCLIPS D42 OEM PIAGGIO COMMON A LA RANGE-AP8121334 More informationQuantity required : 1 |
||||||
|
13 |
AP8152348-SPACER More informationQuantity required : 1 |
||||||
|
14 |
AP8144147-RUBBER MOUNT More informationQuantity required : 1 |
||||||
|
15 |
AP8110085 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/3/img/45833.jpg)
16 |
OIL SEAL (28X35X4) WHEEL SPINDLE REAR OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 250-300 LEONARDO-AP8110086 More informationQuantity required : 1 |
||||||
|
17 |
AP8110087-DISP. PROT. POUSSIERE INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
18 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
19 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 1 |
||||||
|
20 |
AP8150196-SCREW More informationQuantity required : 1 |
||||||
|
21 |
AP8152349-SPACER REAR WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
22 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/4/9/img/46449.jpg)
23 |
EXHAUST PROTECTION - EXTERNAL "PIAGGIO GENUINE PART" APRILIA 125-250-300 LEONARDO -AP8119489 More informationQuantity required : 1 |
||||||
|
24 |
AP8119518 - RONDELLE INOX More informationQuantity required : 8 |
||||||
|
25 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
26 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
27 |
SCREW BTR (8X55) OEM PIAGGIO COMMON A LA RANGE-AP8150046 More informationQuantity required : 1 |
