Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01 APRILIA

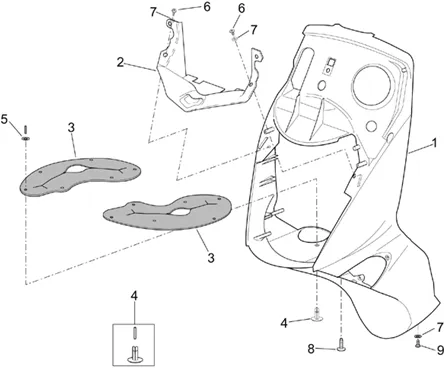

Chassis : 28.10 CARROSSERIE AV. - TABLIER AVANT
Carrosserie av. - Tablier avant
Search
Tab. AV bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8139941

Tab. AV bleu;

Tab. AV noir sh.;

1
P2R reference P2R reference
Maker reference Maker reference AP8148096

Tab. AV noir sh.;

AP8148314 - TAB. AV ROUGE;

1
P2R reference P2R reference 50304
Maker reference Maker reference AP8148314

AP8148314 - TAB. AV ROUGE;

More information

Quantity required : 1

AP8148336 - TAB. AV JAUNE;

1
P2R reference P2R reference 50307
Maker reference Maker reference AP8148336

AP8148336 - TAB. AV JAUNE;

More information

Quantity required : 1

AP8148371 - TABLIER AVANT PEINT GRIS;

1
P2R reference P2R reference 50315
Maker reference Maker reference AP8148371

AP8148371 - TABLIER AVANT PEINT GRIS;

More information

Quantity required : 1

AP8148868 - TABLIER AV.P.BLEU C.;

1
P2R reference P2R reference 50468
Maker reference Maker reference AP8148868

AP8148868 - TABLIER AV.P.BLEU C.;

More information

Quantity required : 1

Tablier av.p.ice g.;

1
P2R reference P2R reference
Maker reference Maker reference AP8148979

Tablier av.p.ice g.;

AP8139325 - CONVOYEUR, NOIR;

2
P2R reference P2R reference 49329
Maker reference Maker reference AP8139325

AP8139325 - CONVOYEUR, NOIR;

More information

Quantity required : 1

AP8217034 - FERMETURE INF. FOURCHE;

3
P2R reference P2R reference 56609
Maker reference Maker reference AP8217034

AP8217034 - FERMETURE INF. FOURCHE;

More information

Quantity required : 2

AP8220471 - RIVET EN PLASTIQUE;

4
P2R reference P2R reference 56895
Maker reference Maker reference AP8220471

AP8220471-RIVET EN PLASTIQUE

More information

Quantity required : 12

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

5
P2R reference P2R reference 71833
Maker reference Maker reference AP8150178

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

More information

Quantity required : 12

SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426

6
P2R reference P2R reference 50874
Maker reference Maker reference AP8150426

SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426

More information

Quantity required : 2

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

7
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 5

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

8
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 1

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

8
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 1

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

9
P2R reference P2R reference 71881
Maker reference Maker reference AP8150425

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

More information

Quantity required : 3
