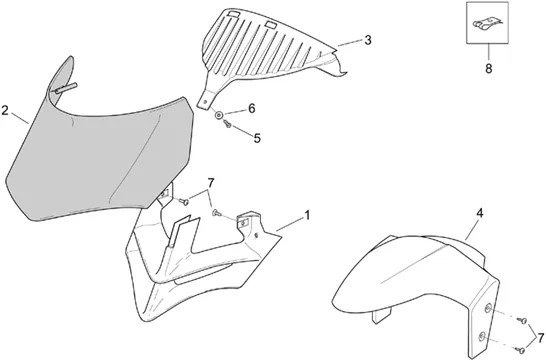

Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01 APRILIA

Chassis : 28.09 CARROSSERIE AV. - COFFRE
Carrosserie av. - Coffre
Search
AP8139432 - GRILLE RADIATEUR GRISE;

1
P2R reference P2R reference 49341
Maker reference Maker reference AP8139432

AP8139432 - GRILLE RADIATEUR GRISE;

More information

Quantity required : 1

Grille radiateur bleue;

1
P2R reference P2R reference
Maker reference Maker reference AP8139914

Grille radiateur bleue;

Grille radiateur rouge;

1
P2R reference P2R reference
Maker reference Maker reference AP8148293

Grille radiateur rouge;

Grille radiateur jaune;

1
P2R reference P2R reference
Maker reference Maker reference AP8148323

Grille radiateur jaune;

Grille rad. p.b.c.;

1
P2R reference P2R reference
Maker reference Maker reference AP8148857

Grille rad. p.b.c.;

Grille rad. p.i.g.;

1
P2R reference P2R reference
Maker reference Maker reference AP8148968

Grille rad. p.i.g.;

Grille radiateur noire;

1
P2R reference P2R reference
Maker reference Maker reference AP8248991

Grille radiateur noire;

Coffre AV bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8139940

Coffre AV bleu;

AP8148095 - COFFRE AV NOIR;

2
P2R reference P2R reference 50274
Maker reference Maker reference AP8148095

AP8148095 - COFFRE AV NOIR;

More information

Quantity required : 1

Coffre av., rouge m.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148313

Coffre av., rouge m.;

Coffre AV giallo;

2
P2R reference P2R reference
Maker reference Maker reference AP8148322

Coffre AV giallo;

AP8148370 - COFFRE AV., GRIS;

2
P2R reference P2R reference 50314
Maker reference Maker reference AP8148370

AP8148370 - COFFRE AV., GRIS;

More information

Quantity required : 1

Coffre av. p.bleu c.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148867

Coffre av. p.bleu c.;

AP8148967 - COFFRE AV. P.ICE G.;

2
P2R reference P2R reference 50496
Maker reference Maker reference AP8148967

AP8148967 - COFFRE AV. P.ICE G.;

More information

Quantity required : 1

AP8139324 - CACHE SUP.TAB. GRIS;

3
P2R reference P2R reference 49328
Maker reference Maker reference AP8139324

AP8139324 - CACHE SUP.TAB. GRIS;

More information

Quantity required : 1

Cache sup.tab. bleu;

3
P2R reference P2R reference
Maker reference Maker reference AP8139905

Cache sup.tab. bleu;

Cache sup.tab. vert;

3
P2R reference P2R reference
Maker reference Maker reference AP8148105

Cache sup.tab. vert;

Cache sup.tab. gris;

3
P2R reference P2R reference
Maker reference Maker reference AP8149604

Cache sup.tab. gris;

AP8126646 - GARDE-BOUE AVANT PEINT GRIS;

4
P2R reference P2R reference 47871
Maker reference Maker reference AP8126646

AP8126646 - GARDE-BOUE AVANT PEINT GRIS;

More information

Quantity required : 1

AP8126749 - GARD-B AV BLEU;

4
P2R reference P2R reference 47883
Maker reference Maker reference AP8126749

AP8126749 - GARD-B AV BLEU;

More information

Quantity required : 1

AP8126773 - GARDE-B AV ROUGE M.;

4
P2R reference P2R reference 47890
Maker reference Maker reference AP8126773

AP8126773 - GARDE-B AV ROUGE M.;

More information

Quantity required : 1

Gard-b AV jaune;

4
P2R reference P2R reference
Maker reference Maker reference AP8126774

Gard-b AV jaune;

AP8126836 - GARDE-BOUE AV.P.B.C.;

4
P2R reference P2R reference 47905
Maker reference Maker reference AP8126836

AP8126836 - GARDE-BOUE AV.P.B.C.;

More information

Quantity required : 1

Garde-boue av.p.i.g.;

4
P2R reference P2R reference
Maker reference Maker reference AP8126844

Garde-boue av.p.i.g.;

AP8226558 - GARD-B AV NOIR;

4
P2R reference P2R reference 57658
Maker reference Maker reference AP8226558

AP8226558 - GARD-B AV NOIR;

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

5
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 1

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

6
P2R reference P2R reference 71844
Maker reference Maker reference AP8150248

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

More information

Quantity required : 1

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

7
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 6

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

8
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2
