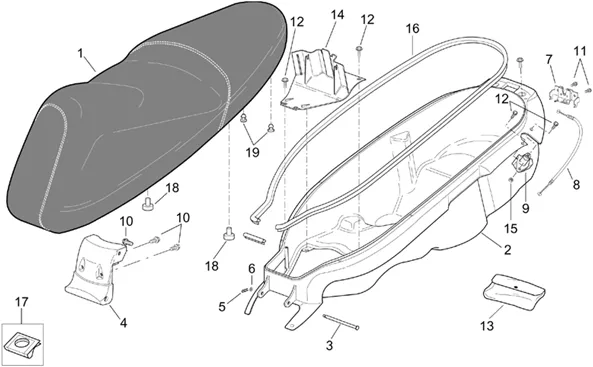

Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01 APRILIA

Chassis : 28.15 SELLE ET COMPART.P-CASQUE
Selle et compart.p-casque
Search
Selle grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8129230

Selle grise;

Selle grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8129311

Selle grise;

Selle bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8129256

Selle bleu;

Selle verte;

1
P2R reference P2R reference
Maker reference Maker reference AP8129266

Selle verte;

AP8139318 - CAISSON PORTE-CASQUE, NOIR;

2
P2R reference P2R reference 49324
Maker reference Maker reference AP8139318

AP8139318 - CAISSON PORTE-CASQUE, NOIR;

More information

Quantity required : 1

AP8221173 - PIVOT CHARNIERE SELLE

3
P2R reference P2R reference 57013
Maker reference Maker reference AP8221173

AP8221173 - PIVOT CHARNIERE SELLE

More information

Quantity required : 1

Attache struct.selle, gris;

4
P2R reference P2R reference
Maker reference Maker reference AP8139317

Attache struct.selle, gris;

Charn.porte-selle bleue;

4
P2R reference P2R reference
Maker reference Maker reference AP8139922

Charn.porte-selle bleue;

Attache struct.selle, noir sh.;

4
P2R reference P2R reference
Maker reference Maker reference AP8148083

Attache struct.selle, noir sh.;

Charn.porte-selle rouge;

4
P2R reference P2R reference
Maker reference Maker reference AP8148301

Charn.porte-selle rouge;

Attache struct.selle, jaune;

4
P2R reference P2R reference
Maker reference Maker reference AP8148333

Attache struct.selle, jaune;

Char.p.-selle p.b.c.;

4
P2R reference P2R reference
Maker reference Maker reference AP8148865

Char.p.-selle p.b.c.;

Char.p.-selle p.i.g.;

4
P2R reference P2R reference
Maker reference Maker reference AP8148976

Char.p.-selle p.i.g.;

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

5
P2R reference P2R reference 72138
Maker reference Maker reference AP8201643

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

More information

Quantity required : 1

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

6
P2R reference P2R reference 71807
Maker reference Maker reference AP8150014

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

More information

Quantity required : 1

SADDLE LOCK "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250 2003>2012, SR 50 2004>2014 -AP8102947-

7
P2R reference P2R reference 71211
Maker reference Maker reference AP8102947

LOCK DE SEAT OEM PIAGGIO APRILIA ATLANTIC 125-250 2003 > 2012, SR 50 2004 > 2014-AP8102947

More information

Quantity required : 1

AP8102948 - CABLE SERRURE

8
P2R reference P2R reference 45266
Maker reference Maker reference AP8102948

AP8102948 - CABLE SERRURE

More information

Quantity required : 1

LOCK SEAT OEM PIAGGIO APRILIA 250 LEONARDO, 125-250-300 ATLANTIC, 125-250 SPORT-CITY-AP8104611

9
P2R reference P2R reference 71232
Maker reference Maker reference AP8104611

LOCK SEAT OEM PIAGGIO APRILIA 250 LEONARDO, 125-250-300 ATLANTIC, 125-250 SPORT-CITY-AP8104611

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

10
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 4

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

11
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 2

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

12
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 4

AP8102964 - TROUSSE A OUTILS;

13
P2R reference P2R reference 45274
Maker reference Maker reference AP8102964

AP8102964 - TROUSSE A OUTILS;

More information

Quantity required : 1

AP8139433 - COUVERCLE INSP., NOIR;

14
P2R reference P2R reference 49342
Maker reference Maker reference AP8139433

AP8139433 - COUVERCLE INSP., NOIR;

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

15
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

890508 - JOINT SELLE

16
P2R reference P2R reference 41725
Maker reference Maker reference 890508

890508 - JOINT SELLE

More information

Quantity required : 1

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

17
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 2

AP8144089-RUBBER FRONT SEAT *

18
P2R reference P2R reference 71749
Maker reference Maker reference AP8144089

AP8144089-RUBBER FRONT SEAT *

More information

Quantity required : 2

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087

19
P2R reference P2R reference 71747
Maker reference Maker reference AP8144087

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087

More information

Quantity required : 2
