Vehicle Exploded View - APRILIA LEONARDO 125 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

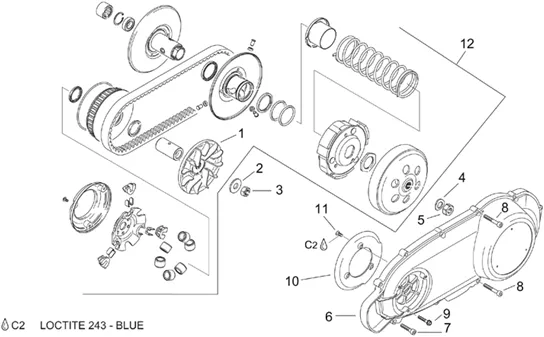

Moteur : 29.51 VARIATEUR AVEC EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/249/Leonardo_125_ST_2001-2004_29.51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/1/3/4/img/44134.jpg)
1 |
FLASQUE FIXE DE PULLEY MOTRICE OEM PIAGGIO APRILIA 125 LEONARDO, SCARABEO ENGINE ROTAX-AP0280092 More informationQuantity required : 1 |
||||||
2 |
AP0227180-WASHER More informationQuantity required : 1 |
||||||
|
3 |
AP0242516 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/7/img/44617.jpg)
4 |
AP0945754 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
|
5 |
AP0242516 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
AP0211518 - COUVERCLE VARIATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
7 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP0840880 More informationQuantity required : 8 |
||||||
|
8 |
AP0241816 - VIS More informationQuantity required : 2 |
||||||
|
9 |
AP0241275 - VIS BRIDE More informationQuantity required : 3 |
||||||
|
10 |
AP0222525 - CONVOYEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/9/1/img/44591.jpg)
11 |
AP0940315 - VIS More informationQuantity required : 3 |
||||||
|
12 |
AP0295331 - VARIATEUR COMPLET More informationQuantity required : 1 |
||||||
|
12 |
AP0295332 - VARIATEUR COMPLET More informationQuantity required : 1 |
