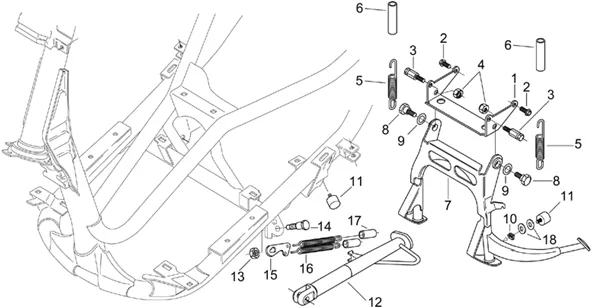

Vehicle Exploded View - APRILIA LEONARDO 125 ST 2001-2004 APRILIA

Chassis : 28.02 BÉQUILLE
Béquille
Search
AP8134321 - PLAQUE BEQUILLE CENTR.;

1
P2R reference P2R reference 48913
Maker reference Maker reference AP8134321

AP8134321-PLATE STAND CENTR.

More information

Quantity required : 1

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

2
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

More information

Quantity required : 2

AP8121937-SCREW ACCROCHAGE SPRING

3
P2R reference P2R reference 46965
Maker reference Maker reference AP8121937

AP8121937-SCREW ACCROCHAGE SPRING

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

4
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 2

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204

5
P2R reference P2R reference 72303
Maker reference Maker reference AP8221204

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204

More information

Quantity required : 2

AP8120855 - PROT.RESS.CAP.CENT.

6
P2R reference P2R reference 46674
Maker reference Maker reference AP8120855

AP8120855-PROT. RESS. CAP. CENT.

More information

Quantity required : 2

AP8146277 - BEQUILLE CENTRALE;

7
P2R reference P2R reference 49974
Maker reference Maker reference AP8146277

AP8146277-CENTRE STAND

More information

Quantity required : 1

SCREW MOUNTING DE STAND OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 125 LEONARDO, SCARABEO 2008 <-AP8121932

8
P2R reference P2R reference 46964
Maker reference Maker reference AP8121932

SCREW MOUNTING DE STAND OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 125 LEONARDO, SCARABEO 2008 <-AP8121932

More information

Quantity required : 2

AP8150466 - RESSORT A GODET

9
P2R reference P2R reference 50885
Maker reference Maker reference AP8150466

AP8150466-SPRING A CUP

More information

Quantity required : 2

AP8152326 - ECROU

10
P2R reference P2R reference 50982
Maker reference Maker reference AP8152326

AP8152326-NUT

More information

Quantity required : 1

BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030

11
P2R reference P2R reference 71739
Maker reference Maker reference AP8144030

BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030

More information

Quantity required : 2

AP8135623 - BEQUILLE LATERALE;

12
P2R reference P2R reference 49144
Maker reference Maker reference AP8135623

AP8135623 - BEQUILLE LATERALE;

More information

Quantity required : 1

NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001

13
P2R reference P2R reference 71907
Maker reference Maker reference AP8152001

NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001

More information

Quantity required : 1

AP8152295 - VIS BEQUILLE LAT.

14
P2R reference P2R reference 50977
Maker reference Maker reference AP8152295

AP8152295 - VIS BEQUILLE LAT.

More information

Quantity required : 1

PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876

15
P2R reference P2R reference 46950
Maker reference Maker reference AP8121876

PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876

More information

Quantity required : 1

SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014

16
P2R reference P2R reference 71426
Maker reference Maker reference AP8121014

SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014

More information

Quantity required : 2

RUBBER SPRING DE STAND OEM APRILIA 125 LEONARDO 1996 > 2004-AP8144152

17
P2R reference P2R reference 49632
Maker reference Maker reference AP8144152

RUBBER SPRING DE STAND OEM APRILIA 125 LEONARDO 1996 > 2004-AP8144152

More information

Quantity required : 2

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150016

18
P2R reference P2R reference 50823
Maker reference Maker reference AP8150016

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150016

More information

Quantity required : 2
