Vehicle Exploded View - APRILIA LEONARDO 125 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

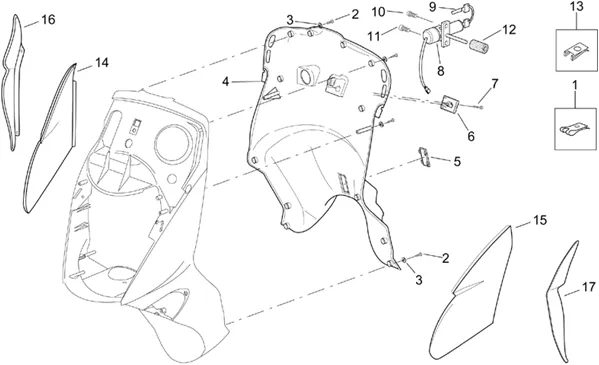

Chassis : 28.11 CARROSSERIE AV. - TABLIER INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/249/Leonardo_125_ST_2001-2004_28.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
1 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
3 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 5 |
||||||
4 |
AP8158316-LEG SHIELD INTERNE GREY More informationQuantity required : 1 |
||||||
|
5 |
Couv. données hom., gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
6 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
|
8 |
AP8102924 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
9 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
10 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
11 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
|
12 |
890514-HOSE POLIFLEX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
14 |
AP8158324 - FLANC D, GRIS; More informationQuantity required : 1 |
||||||
|
14 |
AP8158520 - FLANC D, BLEU; More informationQuantity required : 1 |
||||||
|
14 |
AP8158640 - FLANC D, NOIR; More informationQuantity required : 1 |
||||||
|
14 |
AP8158694 - FLANC D, ROUGE; More informationQuantity required : 1 |
||||||
|
14 |
AP8168653 - FLANC D, GRIS; More informationQuantity required : 1 |
||||||
|
14 |
AP8168671 - FLANC D, ROUGE; More informationQuantity required : 1 |
||||||
|
14 |
AP8168776 - FLANC D, NOIR; More informationQuantity required : 1 |
||||||
|
14 |
Flanc D, bleu |
||||||
|
14 |
AP8178303 - FIANCATINA DX V.BLU MAIN More informationQuantity required : 1 |
||||||
|
15 |
AP8158323 - FLANC G, GRIS; More informationQuantity required : 1 |
||||||
|
15 |
AP8158521 - FLANC G, BLEU; More informationQuantity required : 1 |
||||||
|
15 |
AP8158641 - FLANC G, NOIR; More informationQuantity required : 1 |
||||||
|
15 |
AP8158695 - FLANC G, ROUGE; More informationQuantity required : 1 |
||||||
|
15 |
AP8168654 - FLANC G, GRIS; More informationQuantity required : 1 |
||||||
|
15 |
AP8168672 - FLANC G, ROUGE; More informationQuantity required : 1 |
||||||
|
15 |
AP8168777 - FLANC G, NOIR; More informationQuantity required : 1 |
||||||
|
15 |
Flanc G, bleu |
||||||
|
15 |
AP8178304 - FIANCATINA SX V.BLU MAIN More informationQuantity required : 1 |
||||||
|
16 |
AP8158325-PROTECTOR-CHOCS DTE More informationQuantity required : 1 |
||||||
|
16 |
AP8168663-PROTECTOR-CHOCS DTE * More informationQuantity required : 1 |
||||||
|
17 |
AP8158326-PROTECTOR-CHOCS GCHE More informationQuantity required : 1 |
||||||
|
17 |
AP8168664-PROTECTOR-CHOCS GCHE * More informationQuantity required : 1 |
