Vehicle Exploded View - APRILIA LEONARDO 125 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

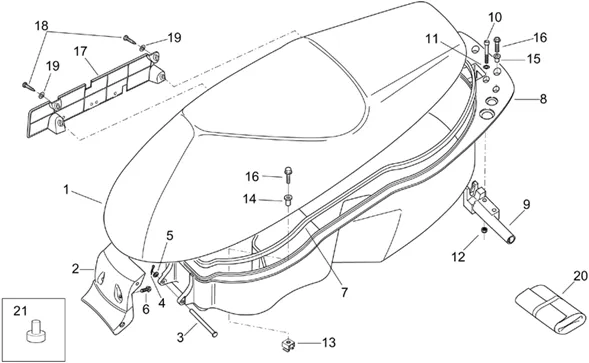

Chassis : 28.16 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/249/Leonardo_125_ST_2001-2004_28.16.PNG)
1 |
AP8129409 - SELLA More informationQuantity required : 1 |
||||||
|
1 |
AP8129415 - SELLA More informationQuantity required : 1 |
||||||
|
1 |
AP8129379 - SELLE; More informationQuantity required : 1 |
||||||
|
1 |
AP8129386 - SELLE; More informationQuantity required : 1 |
||||||
|
1 |
AP8129432 - SELLA GRIGIO BICOLORE More informationQuantity required : 1 |
||||||
|
1 |
Selle; |
||||||
|
2 |
AP8149997 - ATTACHE STRUCT.SELLE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8158518 - ATTACHE STRUCT.SELLE, BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8158551 - ATTACHE STRUCT.SELLE, GRIS; More informationQuantity required : 1 |
||||||
|
2 |
AP8158700 - ATTACHE STRUCT.SELLE, ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8168659 - ATTACHE STRUCT.SELLE, GRIS; More informationQuantity required : 1 |
||||||
|
2 |
AP8168677 - ATTACHE STRUCT.SELLE, ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
Attache struct.selle, bleu |
||||||
|
2 |
AP8178307 - CERNIERA REGGISELLA V.BLU MAIN More informationQuantity required : 1 |
||||||
|
3 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
4 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
5 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
|
7 |
890508 - JOINT SELLE More informationQuantity required : 1 |
||||||
|
8 |
AP8138928 - CAISSON PORTE-CASQUE, NOIR; More informationQuantity required : 1 |
||||||
|
9 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
10 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
|
11 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
13 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 2 |
||||||
|
14 |
AP8121741-BUSH PANEL DE EDGE More informationQuantity required : 2 |
||||||
|
15 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 4 |
||||||
|
17 |
AP8138473 - SUPP.COMP.ELECTR.NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
19 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 4 |
||||||
|
20 |
AP8102872 - TROUSSE A OUTILS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/9/img/71749.jpg)
21 |
AP8144089-RUBBER FRONT SEAT * More informationQuantity required : 2 |
