Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

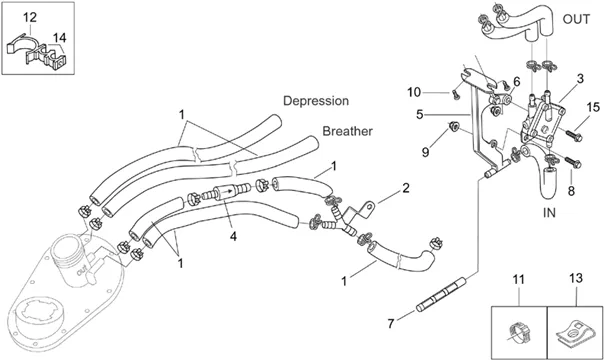

Chassis : 28.25 POMPE ESS. INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.25.PNG)
1 |
AP8220402-HOSE More informationQuantity required : 1 |
||||||
|
2 |
Rac.3 voies a/œillet; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/2/img/45162.jpg)
3 |
FUEL PUMP OEM PIAGGIO APRILIA 125 SCARABEO 1999 > 2004, LEONARDO 1996 > 2001, MOJITO 1999 > 2001, 250 LEONARDO 1999 > 2004, 650 STARK 1995 > 1999 (ENGINE ROTAX)-AP8102408 More informationQuantity required : 1 |
||||||
|
4 |
AP8104251-VALVE DE RETENUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/2/1/4/img/49214.jpg)
5 |
FUEL PUMP SUPPORT "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2004 -AP8138404 More informationQuantity required : 1 |
||||||
|
6 |
Plaquette fixation pompe; |
||||||
|
7 |
Filtre essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
11 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 7 |
||||||
|
12 |
AP8201807-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
13 |
AP8102738-CLAMP SERR. TUBE More informationQuantity required : 4 |
||||||
|
14 |
AP8201808-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
