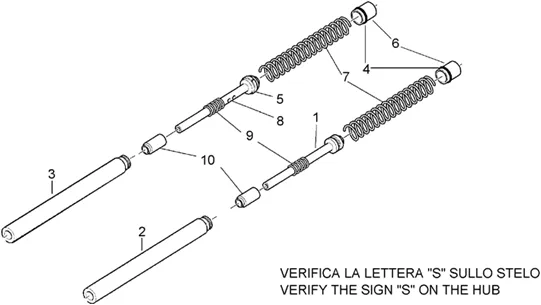

Chassis : 28.04 FOURCHE - TIGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.04.PNG)
1 |
AP8163029 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
1 |
AP8123763 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
1 |
AP8203572-WASHER ETANCHEITE More informationQuantity required : 2 |
||||||
|
1 |
AP8203794 - RONDELLE More informationQuantity required : 2 |
||||||
|
2 |
Tige gauche |
||||||
|
2 |
Tige |
||||||
|
2 |
AP8123774 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
2 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 2 |
||||||
|
3 |
AP8123752 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
3 |
Tige |
||||||
|
3 |
AP8123767 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
3 |
PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 125 X9 2003 > 2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999 > 2005, RX 1995 > 2004-600127 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/3/6/1/img/47361.jpg)
4 |
AP8123775 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/1/img/67411.jpg)
4 |
600125 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/5/7/img/71557.jpg)
4 |
CLIPS DE FORK OEM DERBI 50 SENDA 2000 > 2001-AP8123921 More informationQuantity required : 2 |
||||||
|
5 |
AP8123754-PISTON RING More informationQuantity required : 1 |
||||||
|
5 |
AP8123776-BUSH More informationQuantity required : 1 |
||||||
|
5 |
AP8103199-OIL SEAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/0/img/71530.jpg)
5 |
AP8123769-OIL SEAL More informationQuantity required : 2 |
||||||
|
6 |
600121 - BOULON FOURCHE More informationQuantity required : 2 |
||||||
|
6 |
AP8123761 - BOUCHON More informationQuantity required : 2 |
||||||
|
6 |
Rondelle; |
||||||
|
6 |
AP8123770 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
AP8123699-SPRING More informationQuantity required : 2 |
||||||
|
7 |
AP8123762 - RESSORT More informationQuantity required : 2 |
||||||
|
7 |
AP8123771 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
7 |
BUSH DE COULISSEMENT FORK OEM PIAGGIO 50 RS, RX, SX 2004 <-AP8203447 More informationQuantity required : 2 |
||||||
|
8 |
AP8163027 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
8 |
AP8123763 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8123706 - FOURREAU D; More informationQuantity required : 1 |
||||||
|
8 |
AP8123772 - FOURREAU D More informationQuantity required : 1 |
||||||
|
9 |
AP8123708-CONTRE-SPRING More informationQuantity required : 2 |
||||||
|
9 |
AP8123764-SPRING More informationQuantity required : 2 |
||||||
|
9 |
AP8123707 - FOURREAU G; More informationQuantity required : 1 |
||||||
|
9 |
AP8123773 - FOURREAU G More informationQuantity required : 1 |
||||||
|
10 |
AP8123701-BUFFER DE FOND More informationQuantity required : 2 |
||||||
|
10 |
AP8123765-BUFFER DE FOND More informationQuantity required : 2 |
||||||
|
10 |
AP8203571 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8203796-SCREW More informationQuantity required : 1 |
