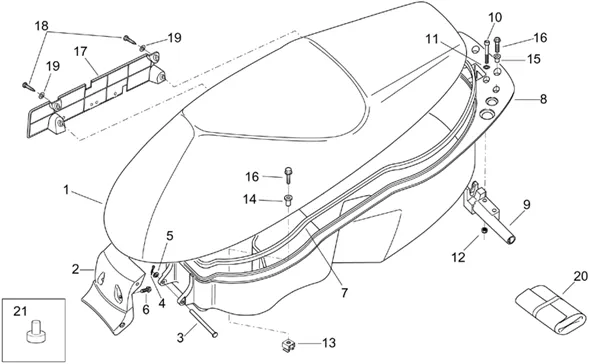

Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001 APRILIA

Chassis : 28.16 GROUPE SELLE
Groupe selle
Search
Selle grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8129310

Selle grise;

Selle bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8129257

Selle bleu;

Selle verte;

1
P2R reference P2R reference
Maker reference Maker reference AP8129263

Selle verte;

Attache struct.selle, jaune;

2
P2R reference P2R reference
Maker reference Maker reference AP8139155

Attache struct.selle, jaune;

AP8139177 - ATTACHE STRUCT.SELLE, BLEU;

2
P2R reference P2R reference 49296
Maker reference Maker reference AP8139177

AP8139177 - ATTACHE STRUCT.SELLE, BLEU;

More information

Quantity required : 1

Attache struct.selle, gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8139317

Attache struct.selle, gris;

Attache struct.selle, noir sh.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148083

Attache struct.selle, noir sh.;

Charn.porte-selle rouge;

2
P2R reference P2R reference
Maker reference Maker reference AP8148301

Charn.porte-selle rouge;

Attache struct.selle, jaune;

2
P2R reference P2R reference
Maker reference Maker reference AP8148333

Attache struct.selle, jaune;

Char.p.-selle p.b.c.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148865

Char.p.-selle p.b.c.;

Char.p.-selle p.i.g.;

2
P2R reference P2R reference
Maker reference Maker reference AP8148976

Char.p.-selle p.i.g.;

Attache struct.selle, rouge hot;

2
P2R reference P2R reference
Maker reference Maker reference AP8149623

Attache struct.selle, rouge hot;

Attache struct.selle, bleu s.;

2
P2R reference P2R reference
Maker reference Maker reference AP8149834

Attache struct.selle, bleu s.;

AP8149997 - ATTACHE STRUCT.SELLE, NOIR

2
P2R reference P2R reference 50822
Maker reference Maker reference AP8149997

AP8149997 - ATTACHE STRUCT.SELLE, NOIR

More information

Quantity required : 1

AP8221173 - PIVOT CHARNIERE SELLE

3
P2R reference P2R reference 57013
Maker reference Maker reference AP8221173

AP8221173 - PIVOT CHARNIERE SELLE

More information

Quantity required : 1

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

4
P2R reference P2R reference 72138
Maker reference Maker reference AP8201643

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

More information

Quantity required : 1

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

5
P2R reference P2R reference 71807
Maker reference Maker reference AP8150014

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

6
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 4

890508 - JOINT SELLE

7
P2R reference P2R reference 41725
Maker reference Maker reference 890508

890508 - JOINT SELLE

More information

Quantity required : 1

AP8138928 - CAISSON PORTE-CASQUE, NOIR;

8
P2R reference P2R reference 49270
Maker reference Maker reference AP8138928

AP8138928 - CAISSON PORTE-CASQUE, NOIR;

More information

Quantity required : 1

AP8201564 - SERRURE SELLE;

9
P2R reference P2R reference 55369
Maker reference Maker reference AP8201564

AP8201564-LOCK SEAT

More information

Quantity required : 1

SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045

10
P2R reference P2R reference 71816
Maker reference Maker reference AP8150045

SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045

More information

Quantity required : 2

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

11
P2R reference P2R reference 71807
Maker reference Maker reference AP8150014

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

12
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

More information

Quantity required : 2

NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213

13
P2R reference P2R reference 57021
Maker reference Maker reference AP8221213

NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213

More information

Quantity required : 2

AP8121741 - DOUILLE TABLEAU DE BORD

14
P2R reference P2R reference 46933
Maker reference Maker reference AP8121741

AP8121741-BUSH PANEL DE EDGE

More information

Quantity required : 2

AP8121790 - "DOUILLE EN ""T"""

15
P2R reference P2R reference 46938
Maker reference Maker reference AP8121790

AP8121790-" BUSH EN " " T " " "

More information

Quantity required : 2

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

16
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

More information

Quantity required : 4

AP8138473 - SUPP.COMP.ELECTR.NOIR;

17
P2R reference P2R reference 49220
Maker reference Maker reference AP8138473

AP8138473 - SUPP.COMP.ELECTR.NOIR;

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

18
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 4

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

19
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 4

AP8102872 - TROUSSE A OUTILS;

20
P2R reference P2R reference 45245
Maker reference Maker reference AP8102872

AP8102872 - TROUSSE A OUTILS;

More information

Quantity required : 1

AP8144089-RUBBER FRONT SEAT *

21
P2R reference P2R reference 71749
Maker reference Maker reference AP8144089

AP8144089-RUBBER FRONT SEAT *

More information

Quantity required : 2
