Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

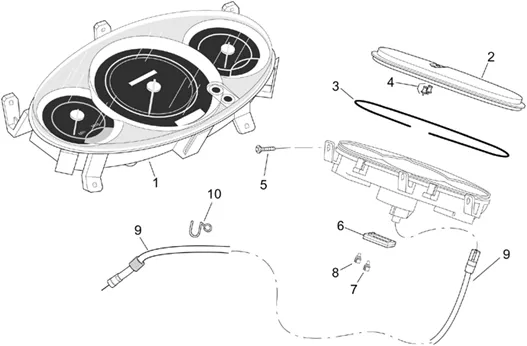

Chassis : 28.19 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.19.PNG)
1 |
AP8124519 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
1 |
AP8124666 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
2 |
AP8127788-PROTEZIONE TRASPARENTE More informationQuantity required : 1 |
||||||
|
2 |
AP8212809-VITRE PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
3 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
AP8212405-RUBBER HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
5 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
6 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
7 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
8 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/2/7/img/46127.jpg)
9 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2004, 125-250 SCARABEO 1999>2006 -AP8114357- More informationQuantity required : 1 |
||||||
|
10 |
AP8144055 - GUIDE-CABLE More informationQuantity required : 1 |
