Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

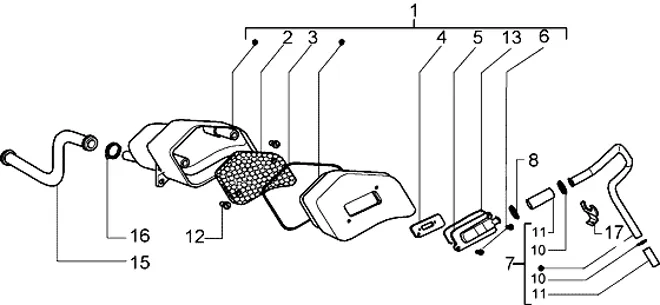

Moteur : T16/A BOÎTIER AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T16_A.PNG)
1 |
487248 - BOITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/2/3/img/139423.jpg)
1 |
EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 2 STROKE -8318595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/5/img/66715.jpg)
2 |
AIR FILTER HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-486942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/6/img/66716.jpg)
3 |
GASKET HOUSING AIR OEM PIAGGIO 50 2T COMMON A LA RANGE-486943 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/5/img/68695.jpg)
4 |
CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R More informationQuantity required : 1 |
||||||
|
5 |
827209-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
6 |
SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533 More informationQuantity required : 2 |
||||||
|
7 |
827441 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
8 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/2/img/68672.jpg)
10 |
CLAMP HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827444 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/1/img/68671.jpg)
11 |
SLEEVE DE HOSE RECYCLAGE DES THROTTLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-827443 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
12 |
SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597 More informationQuantity required : 2 |
||||||
|
13 |
GASKET HOUSING AIR OEM PIAGGIO 50 2T COMMON A LA RANGE-486943 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/6/img/68656.jpg)
15 |
TUBE AIR SECONDAIRE OEM PIAGGIO 50 2T FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-827208 More informationQuantity required : 1 |
||||||
|
16 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 1 |
||||||
|
17 |
827794-GUIDE-CABLE More informationQuantity required : 1 |
