Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

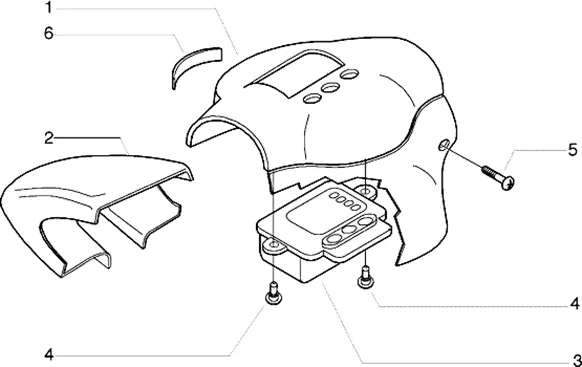

Guidon : T34 PIECES COMPOSANT LE GUIDON-GR. INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T34.PNG)
Search
1 |
582233000C - CACHE DIRECTION ICE More informationQuantity required : 1 |
||||||
|
2 |
COVER STEERING OEM PIAGGIO GILERA 50 ICE-5822320082 More informationQuantity required : 1 |
||||||
|
3 |
COMPTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
4 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
5 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 2 |
||||||
|
6 |
DECOR JAUNE |
