Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

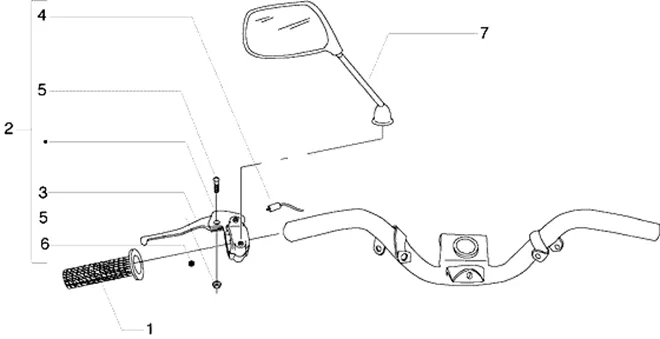

Guidon : T33 MANCHON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T33.PNG)
1 |
583093 - POIGNEE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/5/img/82315.jpg)
2 |
597894 - PORTE LEVIER GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/1/0/img/86710.jpg)
3 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" PIAGGIO 125 X8 STREET/GILERA 50 STALKER NACKED -647552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
4 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
5 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
6 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
|
7 |
CM066002-LEFT MIRROR More informationQuantity required : 1 |
||||||
|
8 |
RETROVISEUR DROIT |
