Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

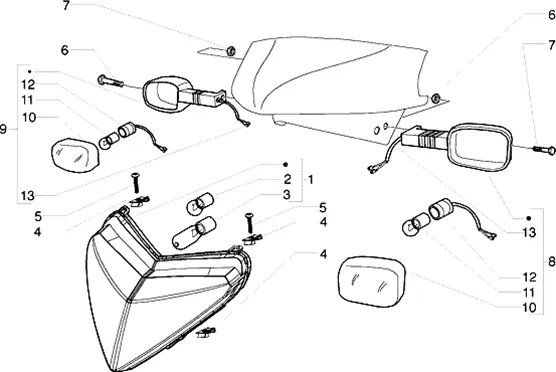

Connexions électriques : T39 FEUX ET CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T39.PNG)
1 |
PROJECTEUR |
||||||
|
1 |
PROJECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
2 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
3 |
AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
5 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/1/img/66021.jpg)
6 |
257403 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/0/img/68490.jpg)
7 |
709041 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
581803-IND. DIRCT. AVG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/4/5/img/81645.jpg)
9 |
581804-IND. DIRECT. AVD More informationQuantity required : 1 |
||||||
|
10 |
LENS FOR FLASHER - LEFT OR RIGHT -"PIAGGIO GENUINE PART" PIAGGIO GILERA 50 DNA -582244 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
11 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
|
12 |
|
||||||
|
13 |
582248-WIRING HARNESS C30 CLIGNOTEUR More informationQuantity required : 2 |
